Max Hauri 177210 Splitter plug 3-pin White

White plug-in air freshener bottle labeled 'MAX HAURI' with a green 'BE-FRESH GREEN & FAIR' seal and a power dial<br>

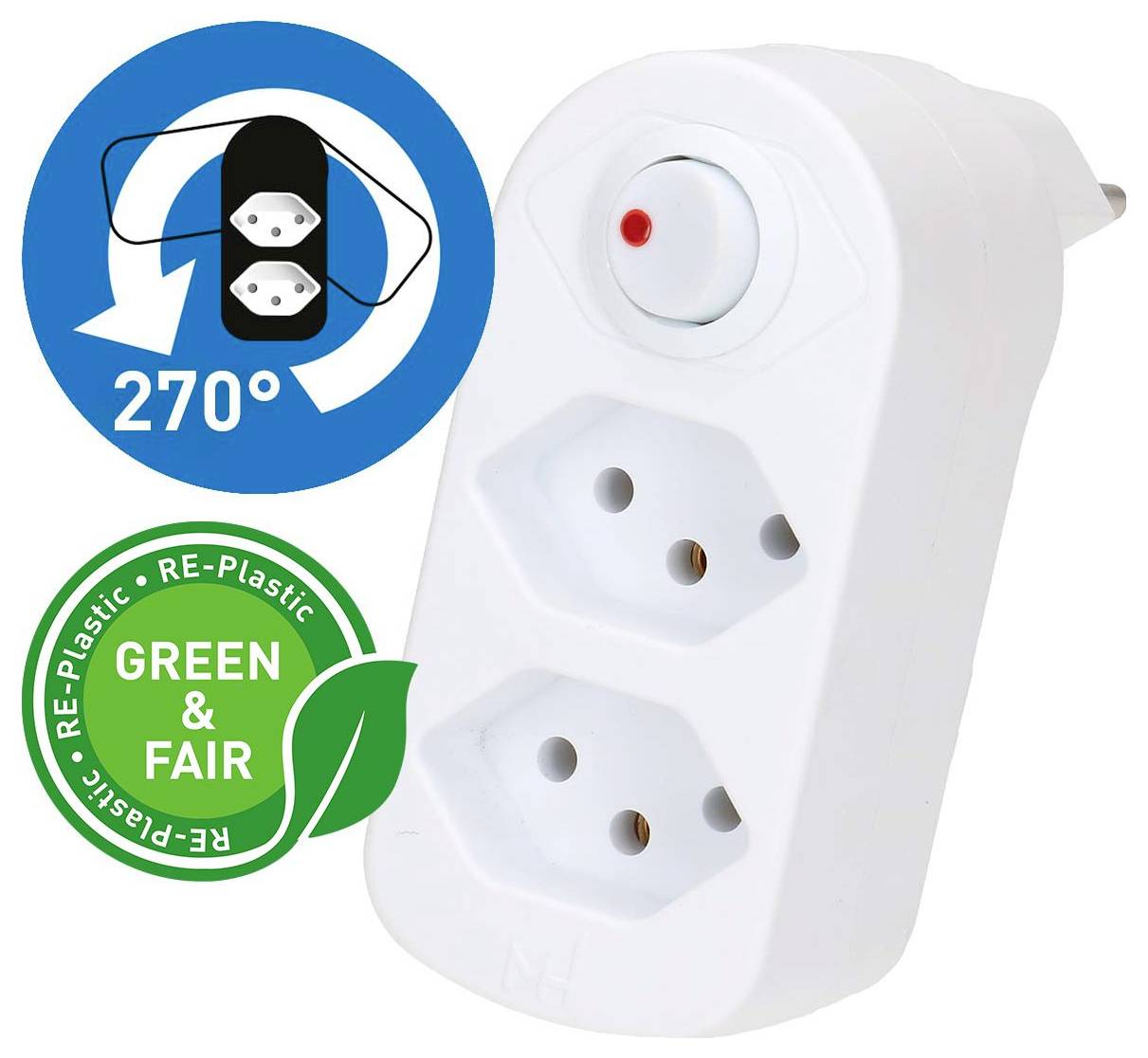

White 2-socket electrical adapter with red indicator light, shown with 270° rotation icon and 'Green & Fair' recycled-plastic badge.
White plug-in adapter with two outlets and a red power button, labeled green and fair with a re-plastic recycling badge.

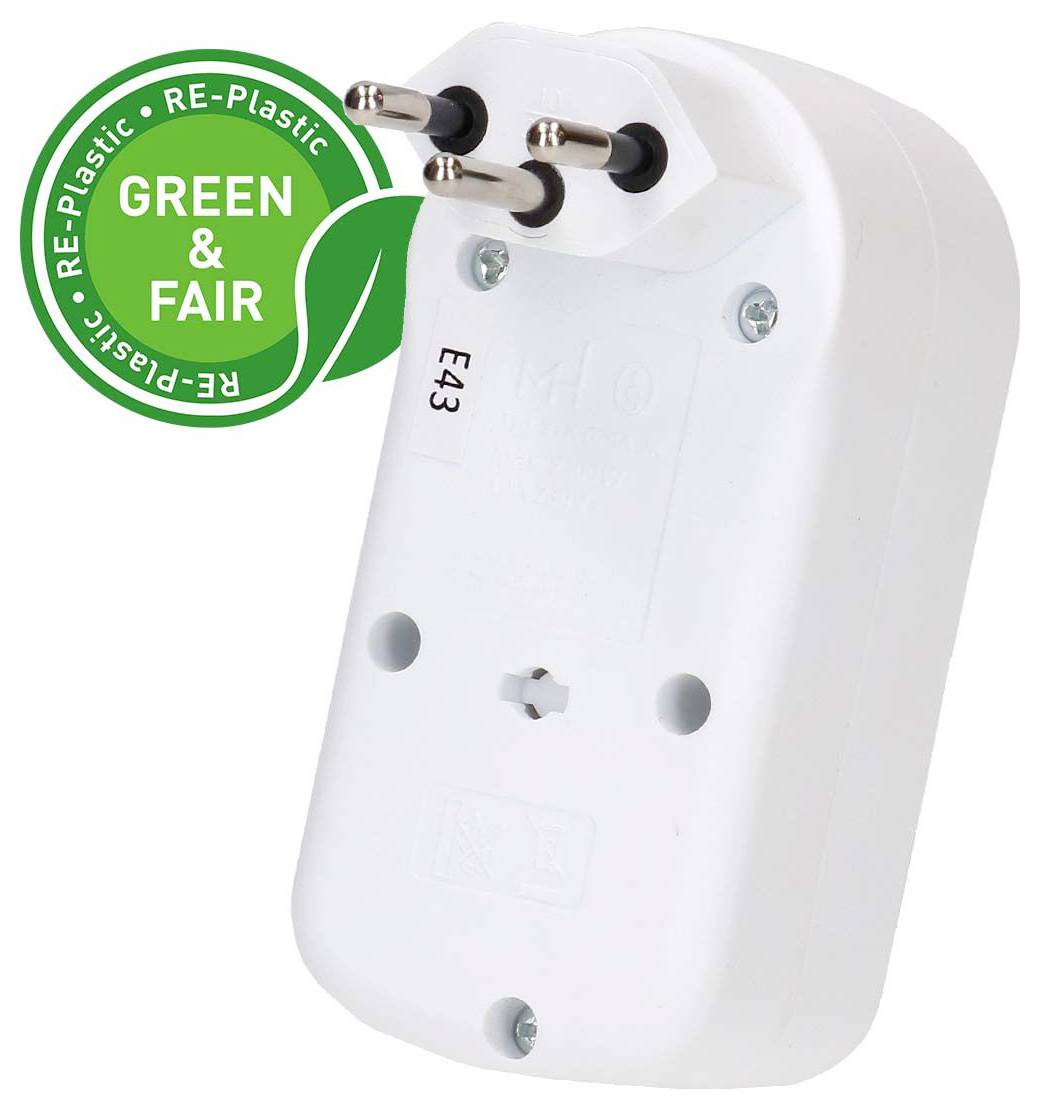

White plug-in device adapter with three prongs and green 'GREEN & FAIR' Re-Plastic eco label<br>

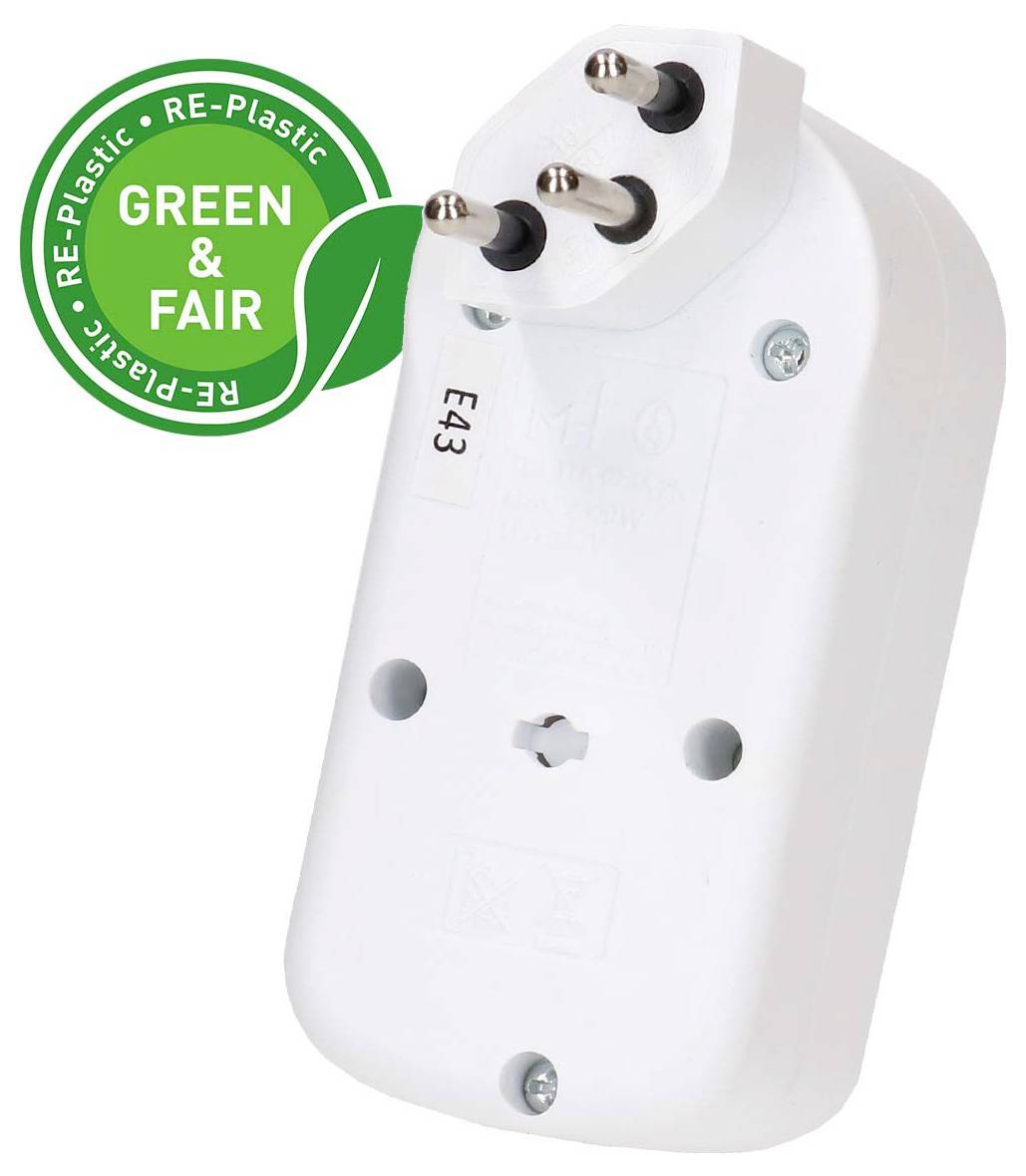

White plug-in device adapter with three round prongs, labeled E43, next to a green 'GREEN & FAIR' Re-Plastic seal.<br>

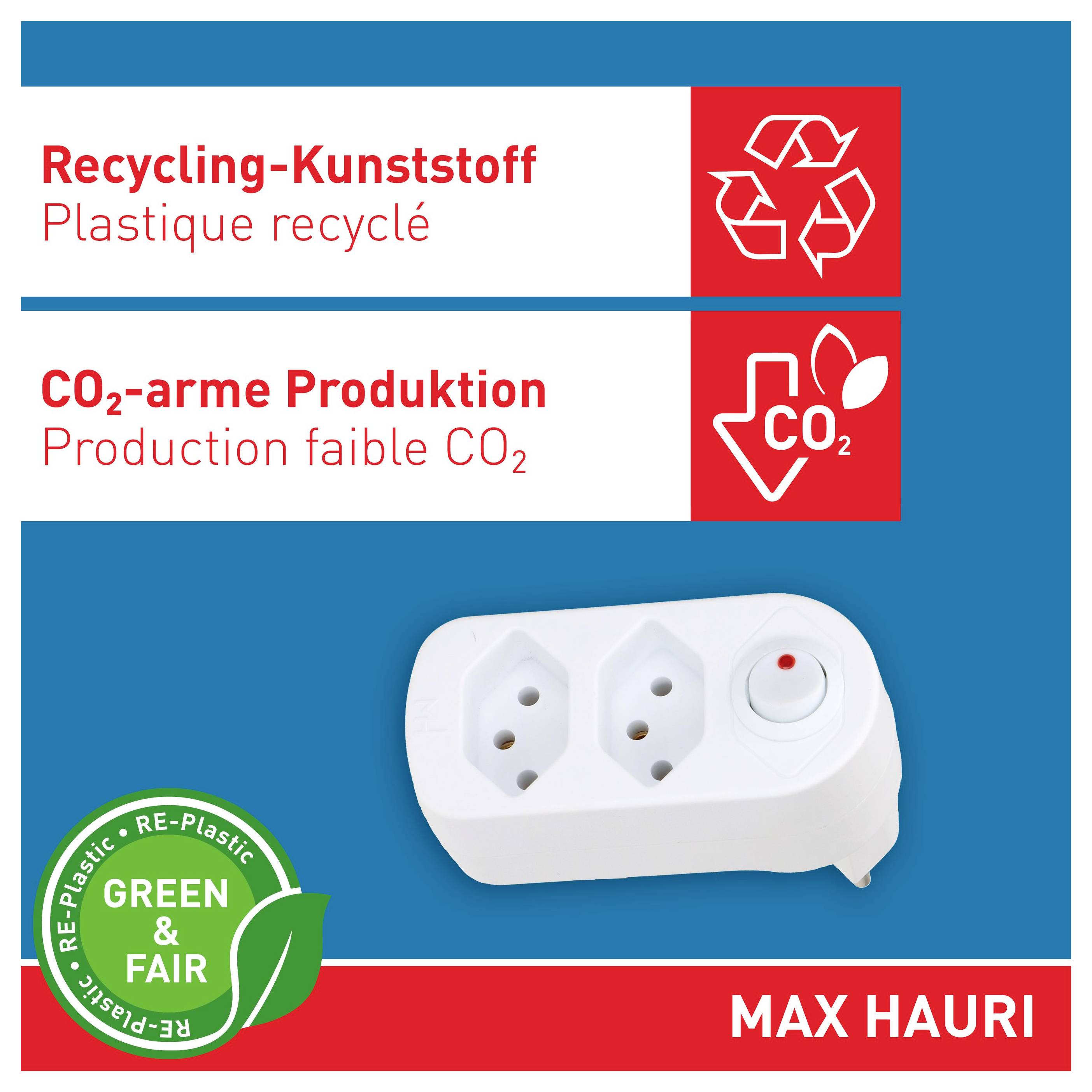

Packaging label promoting MAX HAURI power strip made from recycled plastic with low-CO2 production and Green & Fair certification.<br>
Product image of a MAX HAURI power strip with three outlets and a 270° rotating plug, labeled in German/French as tested high quality and 'Green & Fair'.
Three-way power adapter plugged into a wall outlet, shown with a translucent overlay illustrating how it rotates between positions.
Black power plug connected to a white wall outlet with two switches on a plain wall.

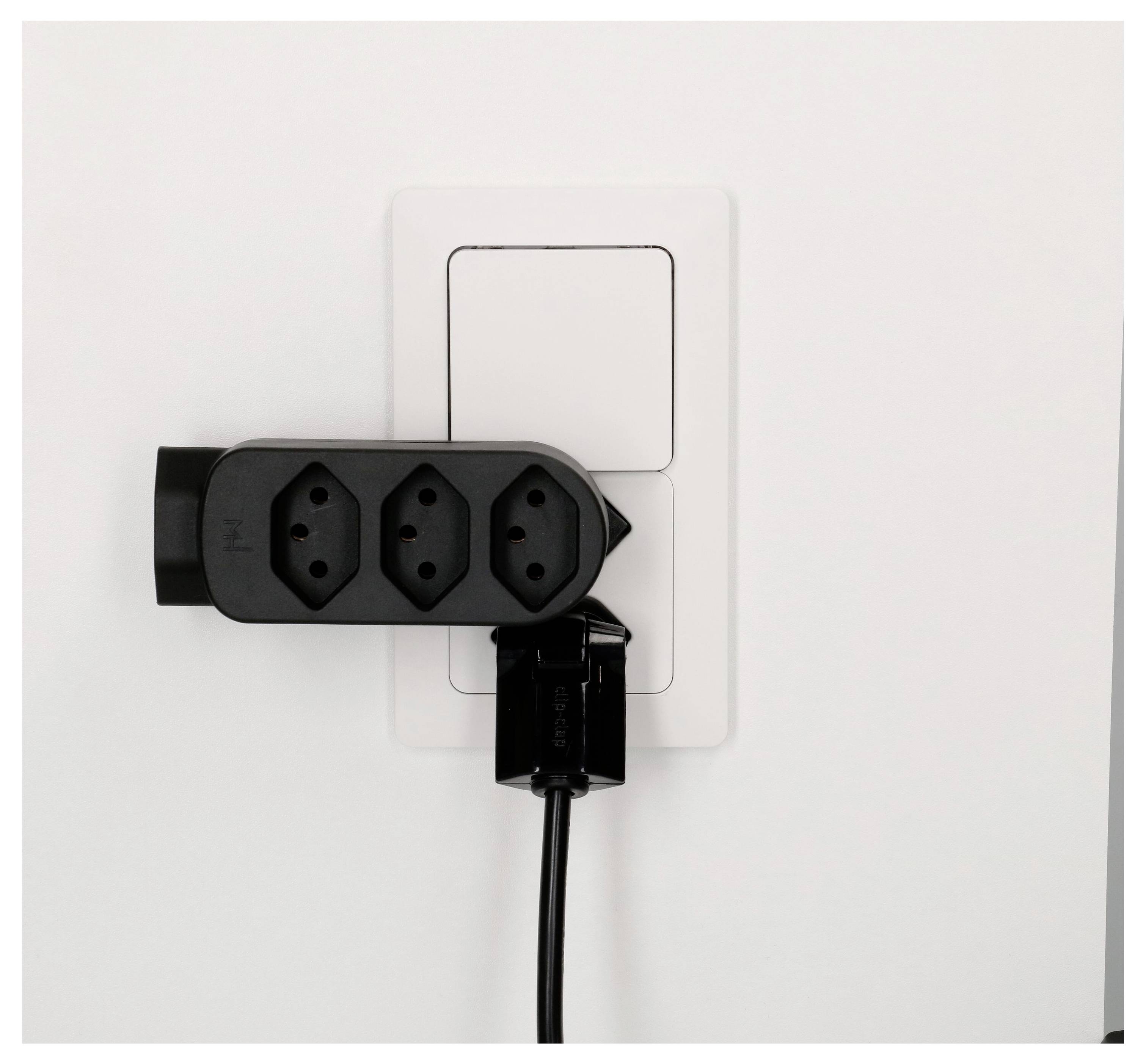

Black power strip plugged into a white wall outlet, with one cord hanging down.
1/10
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Branch plug ADAPT 2x type 13 white rotatable switch green+fair

  • Made of high-quality recycled plastic
  • Compact socket extension
  • Possible to prevent stand-by performance by means of the integrated switch
  • Rotation up to 270° prevents the blockage of adjacent outlets or switch
  • High safety

Technical specifications

  • Power plug type T12
  • Supported positioning: Indoors
  • Number of AC outputs: 2 AC outputs
Product type

Splitter plug

Operating voltage

230 V

Power rating

2300 W

No. of pins

3-pin

Factory colour

White

IP20

Length

100 mm

Width

47 mm

Height

85 mm

Dim

(L x W x H) 100 x 47 x 85 mm

Material (details)

Polyamide

Load (max.)

10 A

Power supply (details)

230 V

Weight

76 g

Illuminated on/off switch

yes

Maximum input power

2300 W

Number of products included

1 Stück(e)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3819914 Max Hauri 177210 Splitter plug 3-pin White

Description

This produced branch connector is made from high-quality recycling plastic. The use of recycled material instead of new plastic significantly reduces CO2 emissions. This is how you make an active contribution to resource conservation. This connector provides two type 13 sockets. Due to its compact design, it is suitable for Ideal for easy extension of socket The integrated switch enables the on and off of the connected devices directly at the plug. The plug that can be rotated up to 270° provides maximum flexibility in every situation. Thanks to the S+ safety mark, compliance with the legal regulations and thus a maximum safety is guaranteed. Devices with a total output of max. 2300 Watts may be operated simultaneously via the plug.

This text is machine translated.

Features

  • Branch plug adapter
  • Plug: Type 12
  • 2x Type 13 coupling (2x front)
  • Voltage 250V
  • Current: 10A
  • Number of poles: 3
  • Additional function: Rotatable, switch
  • Made from RE-Plastic

Scope of delivery

  • Branch plug
