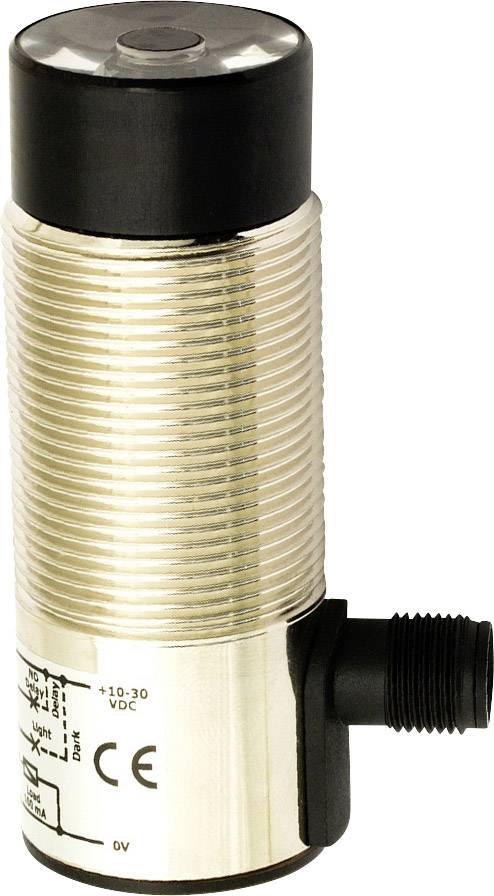

MD Micro Detectors LDLV/0N-1K Luminescence sensor LDLV/0N-1K 1 pc(s)
Product type
Luminescence sensor
Type
LDLV/0N-1K
Min. operating voltage
10 V DC
Max. operating voltage
30 V DC
Operating voltage
10 - 30 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Weight: 400 g Approvals: Nominal sensing range Sn: 30 mm Output type: NPN no-load current: 20 mA Load current: 100 mA
- Product type
Luminescence sensor
- Type
LDLV/0N-1K
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Connector
M12
IP65
- Content
1 pc(s)
- Enclosure material
Brass
- Material properties
nickel plated
- Switching frequency
400 Hz
- Max. temperature
+55 °C
- Min. temperature
-5 °C
Documents & Downloads
Datasheet
Datasheet 2273331 MD Micro Detectors LDLV/0N-1K Luminescence sensor LDLV/0N-1K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2273331 MD Micro Detectors LDLV/0N-1K Luminescence sensor LDLV/0N-1K 1 pc(s)
Conformity certificate
Conformity certificate 2273331 MD Micro Detectors LDLV/0N-1K Luminescence sensor LDLV/0N-1K 1 pc(s)
Description
Scope of delivery
- 2 x fixing nuts+H2:I25
