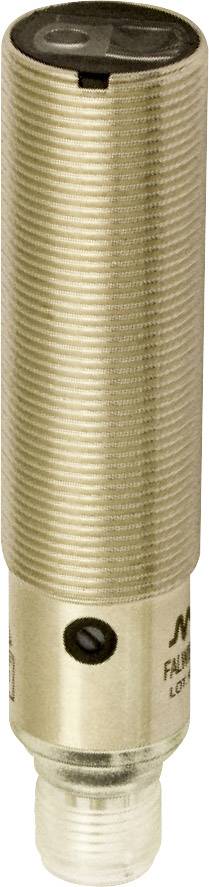

MD Micro Detectors Optical sensor FALW/BP-1E FALW/BP-1E 1 pc(s)
Packaging type
Piece
Product type
Optical sensor
Max. operating voltage
30 V DC
Connector
M12
Type
FALW/BP-1E
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Optical sensor FALW/BP-1E
Technical specifications
- Weight: 60 g
- Approvals: , cULus
- Nominal sensing range Sn: 30..150 mm
- Output type: PNP
- No-load current ≤ 340 mA
- Load current ≤ 3 100 mA
- Packaging type
Piece
- Product type
Optical sensor
- Type
FALW/BP-1E
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Connector
M12
- Enclosure material
Brass
- Material properties
nickel plated
IP67
- Min. temperature
-5 °C
- Max. temperature
+55 °C
- Content
1 pc(s)
- Switching frequency
1.5 kHz
Documents & Downloads
Datasheet
Datasheet 2273303 MD Micro Detectors Optical sensor FALW/BP-1E FALW/BP-1E 1 pc(s)
Datasheet 2273303 MD Micro Detectors Optical sensor FALW/BP-1E FALW/BP-1E 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2273303 MD Micro Detectors Optical sensor FALW/BP-1E FALW/BP-1E 1 pc(s)
Conformity certificate
Conformity certificate 2273303 MD Micro Detectors Optical sensor FALW/BP-1E FALW/BP-1E 1 pc(s)
Description
Scope of delivery
- Fixing nut M18 x 1, screwdriver
- This text is machine translated.
Hints
For more information on this FALW/BP-1E, please refer to its datasheet under 'downloadable documents'
