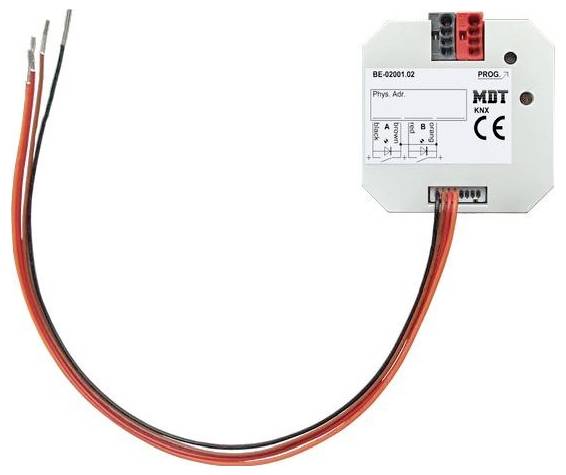

MDT BE-02001.02 Interface BE-02001.02 2fach UP Eingänge potential

KNX button interface / 2-way button interface, UP, potential-free design. Execution for connecting potential free contacts or LEDs. For installation in the switch box, cable length max. 10 m. For connection of buttons, switches, window contacts. Each channel can be set as output for 1.5 mA low-current LEDs. Multiple typing functions send up to 4 values on the same or different objects. Innovative group control with long/extra long button press. 4 integrated logic modules, e.g. for evaluating the inputs (window closed or send second object). NO and NC operation, length of key press adjustable. Dimmer and blind function for one and two button operation Send values, guidance and switching commands can be adjusted. Built-in bus coupler. Short/long keystroke with 2 objects. Integrated pulse and switching counter, cyclic transmission can be set. For mounting in the switch box (length of the connection cable 22 cm). Dimensions (H x W x D) 41 x 41 x 12 mm.

This text is machine translated.
