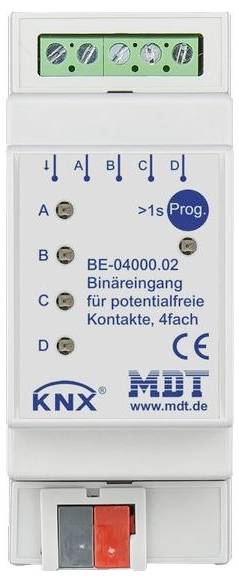

MDT BE-04000.02 Binary input BE-04000.02
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Binary input
IP20
- Factory colour
Multicolour
- Width
41.0000 mm
- Height
101.0000 mm
- Depth
69.0000 mm
- Dim
(W x H x D) 41.0000 x 101.0000 x 69.0000 mm
- Hub
Not required, optional for remote access
n.rel.
- Weight
0.0980
- Features
LED display
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3818606 MDT BE-04000.02 Binary input BE-04000.02
User & Safety Instructions
User & Safety Instructions 3818606 MDT BE-04000.02 Binary input BE-04000.02
Description
KNX binary input 4-way, 2TE REG, potential-free design. Design for the connection of potential-free contacts. LED display for each channel, max. 100 m. For connection of buttons, switches, window contacts. Multiple typing functions send up to 4 values on the same or different objects. Innovative group control with long/extra long button press. 4 integrated logic modules, e.g. for evaluating the inputs (window closed or send second object). Normally open and normally closed contact, send contact state. Dimmer and blind function for one and two button operation Send values, forced guidance. Scenes and blocked objects for each channel. Short/long keystroke with 2 objects. Impulse and switch counter with extensive counter functions (suitable for 30 ms S0 Impulse, e.g. Eltako DSZ). Cyclic sending, sending after reset. Internally generated 12 V contact voltage.
