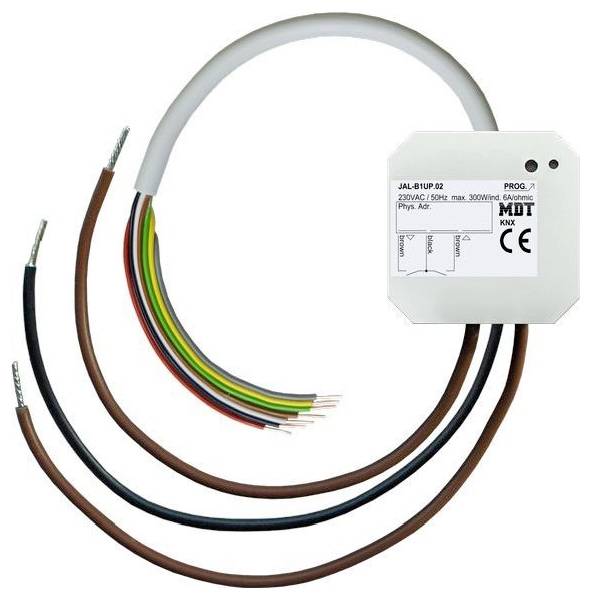

MDT JAL-B1UP.02 Blinds actuator 1fach 6A 230VAC 4 pot. Binäreingänge
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
Blinds actuator
- Max. switching capacity
300 W
IP20
- Mounting type
Flush mount
- Hub
Not required, optional for remote access
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3818562 MDT JAL-B1UP.02 Blinds actuator 1fach 6A 230VAC 4 pot. Binäreingänge
User & Safety Instructions
User & Safety Instructions 3818562 MDT JAL-B1UP.02 Blinds actuator 1fach 6A 230VAC 4 pot. Binäreingänge
Description
KNX blind actuator 1-way, UP, 6 A, 230 V AC, with 4 binary inputs. For 230 V AC Motors to 300 W. With 4 Binary inputs and Sun level calculation. Function blinds/shutters: Practical ventilation function (window opened/tilted). Automatic shading/leaf tracking with calculation of the sun's level. Running, pause and step time can be set freely. Separately adjustable driving times for up / down. Scan mode for exact positioning. Advanced 1-bit automatic positions and scene functions. 1 bytes of absolute positioning for height and blade. Alarm, central and lock functions. Adjustable behavior in case of bus voltage failure/return. Binary input function:. For connection of switches, switches, window contacts. Integrated evaluation of the window contacts. Binary inputs can be used internally or via objects in the KNX bus. Roller blind and blind function for one and two-button operation Binary inputs can be used as button interface/button interface. Dimensions (H x W x D) 41 x 41 x 22 mm.
