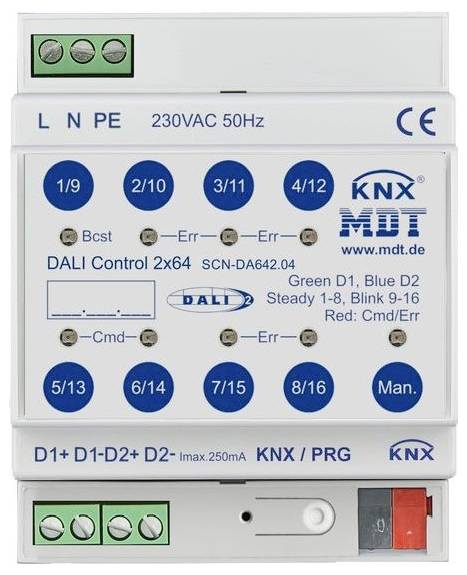

MDT SCN-DA642.04 DALI gateway

DALI Control 2 x 64 Gateway, 4TE REG, KNX, MDT. The DALI Gateway is DALI-2 certified. Colour setting through HSV control. 2 DALI outputs. 2 DALI outputs for max. 2 x 64 EVG. Individual control of up to 64 ECGs / 16 DALI groups per output. Supports DALI and DALI-2 standard, as well as DALI DT6/DT8. Innovative HSV color control, RGB, RGBW and XY color as per DALI DT8 standard. Tunable white color temperature control. Integrated color control module for time-dependent control of the light color. Active status query of individual ECGs in case of external overmodulation. Supports ECGs of device type 51, in order to make power or power values available directly. Operating modes: Normal, duration, night, staircase, panic and manual control. 16 scenes with individual dimming times. Power saving function for switching off the ECGs in the DALI groups (via additional KNX switching actuator). Detection of faulty lamps and ECGs, EVG quick-exchange. Free DCA APP for commissioning and configuration of DALI bus system, commissioning from ETS 5 onwards.
