MEAN WELL ADS-15512 SMPSU 12 V DC 12.5 A 153 W

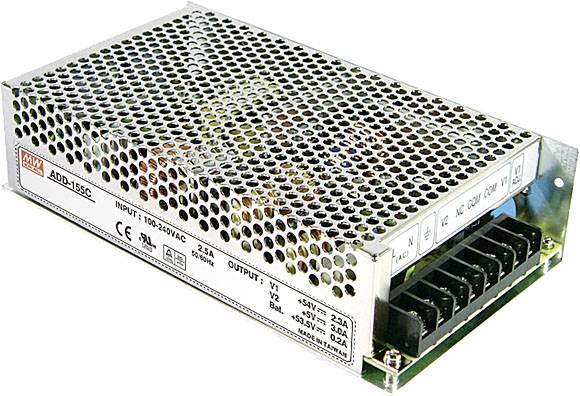

Power supply unit with metal mesh enclosure, markings and connections on the front; suitable for industrial applications.

Power supply unit with metal mesh enclosure, markings and connections on the front; suitable for industrial applications.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

MEANWELL switched-mode power supplies series ADS-155 Enclosed Single Output Power: 155W

Output 12 V DC / 12.5 A
Power 153 W
Screw terminal

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC
370 V DC

Max. output current: 12.5 A

Output current (max.) - rounded: 12.5 A

Min. input voltage: 88 V AC
124 V DC

Dim: (L x W x H) 199 x 110 x 50 mm

Output voltage (max.): 12 V DC

Connection: Screw terminal

: 153 W

No. of outputs: 1 x

Type: closed

Operating temperature (max.): +60 °C

Operating temperature (min.): -10 °C

Weight: 1000 g

PSU features: DC-to-DC converter

Type: Pulsed

Width: 110 mm

Height: 50 mm

Length: 199 mm

Type: ADS-15512

MTBF: 202300 h

Output current 2 (max.): 3 A

Output voltage 2 (max.): 5 V DC

PFC: Yes

Documents & Downloads

Datasheet

Datasheet 2249358 MEAN WELL ADS-15512 SMPSU 12 V DC 12.5 A 153 W

User & Safety Instructions

User & Safety Instructions 2249358 MEAN WELL ADS-15512 SMPSU 12 V DC 12.5 A 153 W

Warranty Terms

Warranty Terms 2249358 MEAN WELL ADS-15512 SMPSU 12 V DC 12.5 A 153 W

Features

Closed type (case), screw terminals
Universal input
Protected against short circuit, overload, overvoltage

Description

Features

Closed type (case), screw terminals
Universal input
Protected against short circuit, overload, overvoltage
