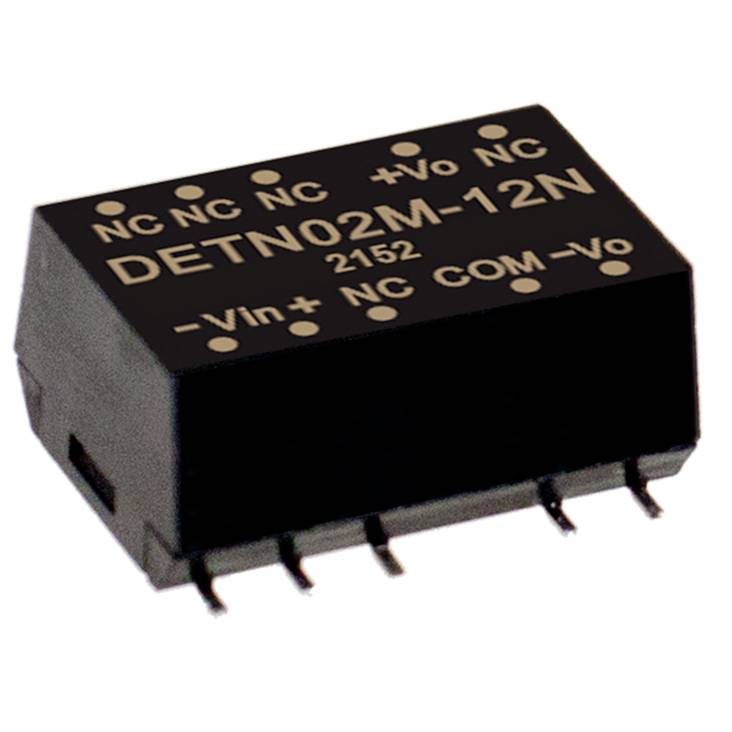

Image similar
MEAN WELL DETN02L-12N DC/DC converter (SMD) 83 mA 2 W No. of outputs: 2 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter (SMD)
- Type
DETN02L-12N
- Min. input voltage
4.5 V
- Input voltage (max.)
5.5 V
- No. of outputs
2 x
- Max. output current
83 mA
- Output current (max.) - rounded
83 mA
- Efficiency (max.)
81 %
2 W
- Insulation voltage
3000 V
- Enclosure
SMD
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 15.24 x 10.9 x 9.1 mm
- Height
9.1 mm
- Length
15.24 mm
- Width
10.9 mm
- RoHS-compliant
Yes
- Output voltage (max.)
12 V DC
- Output voltage (min.)
-12 V DC
- Weight
1.6 g
- Content
1 pc(s)
