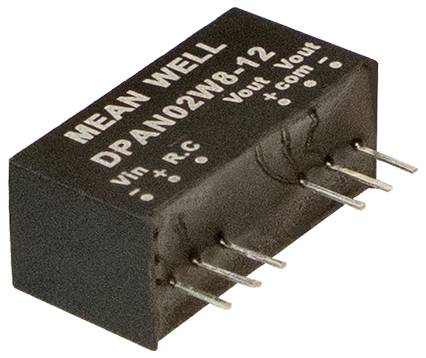

MEAN WELL DPAN02W8-12 DC/DC converter 0.083 A 2 W No. of outputs: 2 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- REMOTE Function
- Product type
DC/DC converter
- Type
DPAN02W8-12
- No. of outputs
2 x
- Max. output current
0.083 A
- Output current (max.) - rounded
83 mA
- Efficiency (max.)
83 %
2 W
- Insulation voltage
3 kV
- Enclosure
SIP 8
- PSU features
Regulated
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+95 °C
- Dim
(L x W x H) 21.8 x 9.2 x 11.1 mm
- Height
11.1 mm
- Length
21.8 mm
- Width
9.2 mm
- RoHS-compliant
Yes
- Output voltage (max.)
12 V
- Output voltage (min.)
-12 V
- Output current (min.)
-0.083 A
- Weight
4.8 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3556658 MEAN WELL DPAN02W8-12 DC/DC converter 0.083 A 2 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3556658 MEAN WELL DPAN02W8-12 DC/DC converter 0.083 A 2 W No. of outputs: 2 x Content 1 pc(s)
Description
The DPAN02W8 series is an insulated and regulated 2W DC/DC converter in modular design in SIP8 casing. They have an international standard pinning, a high degree of efficiency of up to 83%, a wide operating temperature range of -40-+95°C, 3Vdc I/P-O/P isolation voltage, compliance with BS EN/EN55022 Radiation class A without additional components, overload and short-circuit protection, etc. The models have an ultra-wide input range of 9-75Vdc, 8:1 input voltage ratio and various output voltages, +-5V/+-12V/+-15V dual outputs suitable for all types of systems, such as industrial controls, telecommunications, distributed power architectures, etc.
