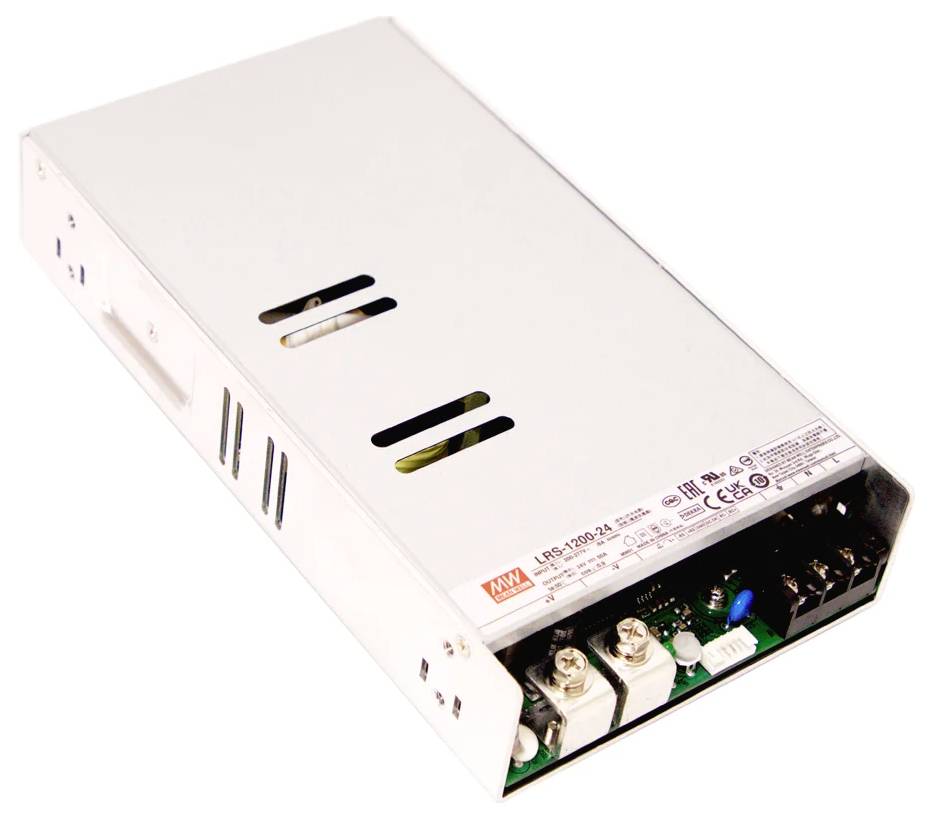

MEAN WELL LRS-1200-36 AC/DC industrial PSU module 36 V 33.3 A 1198.8 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
- Output 36 V / 33.3 A
- Power 1198.8 W
- Screw terminal
Technical specifications
- Product type
AC/DC industrial PSU module
- Input voltage (max.)
305 V AC
431 V DC
- Max. output current
33.3 A
- Output current (max.) - rounded
33.3 A
- Min. input voltage
180 V AC
255 V DC
- Dim
(L x W x H) 225 x 124 x 41 mm
- Output voltage (max.)
36 V
- Connection
Screw terminal
1198.8 W
- Efficiency to
94 %
- Protection class
I
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-30 °C
- Weight
1280 g
- Width
124 mm
- Height
41 mm
- Length
225 mm
- Type
LRS-1200
