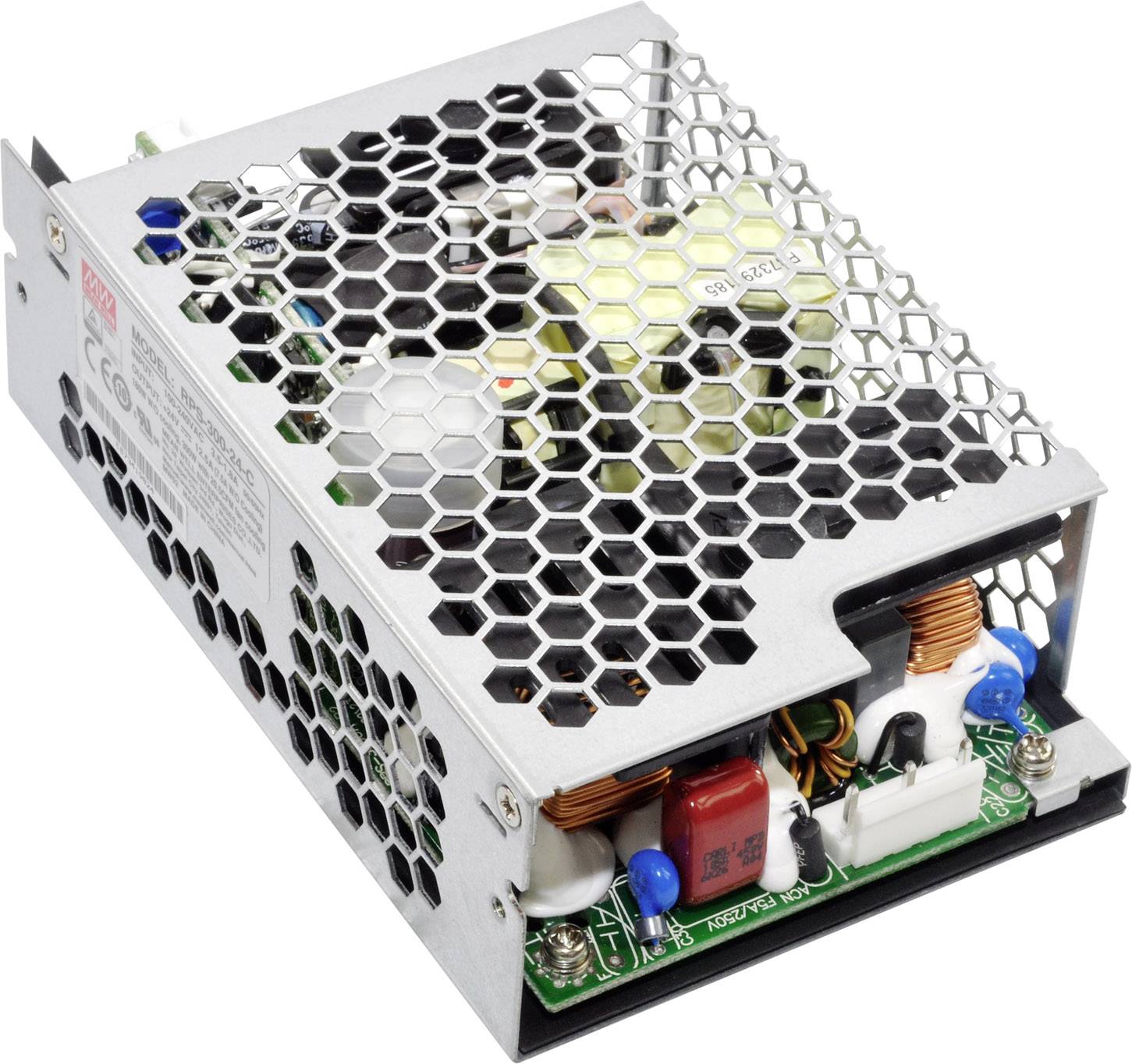

MEAN WELL RPS-300-48-C SMPSU 48 V 6.25 A 200.2 W, 300 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Mean corrugated switched-mode power supply RPS -300-48-C
- Output 48 V / 6.25 A
- Power 200.2 W, 300 W
- Pin strip for nylon crimp connectors
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
6.25 A
- Output current (max.) - rounded
6.25 A
- Min. input voltage
90 V AC
127 V DC
- Dim
(L x W x H) 130 x 86 x 43 mm
- Output voltage (max.)
48 V
- Connection
Pin strip for nylon crimp connectors
200.2 W
300 W
- No. of outputs
1 x
- Type
closed
- Weight
563 g
- Type
Pulsed
- Width
86 mm
- Height
43 mm
- Length
130 mm
- Type
RPS-300-48-C
- MTBF
160000 h
- Output voltage (min.)
48 V DC
- PFC
Yes
- Max. temperature
+70 °C
- Min. temperature
-30 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1838041 MEAN WELL RPS-300-48-C SMPSU 48 V 6.25 A 200.2 W, 300 W
User & Safety Instructions
User & Safety Instructions 1838041 MEAN WELL RPS-300-48-C SMPSU 48 V 6.25 A 200.2 W, 300 W
Warranty Terms
Warranty Terms 1838041 MEAN WELL RPS-300-48-C SMPSU 48 V 6.25 A 200.2 W, 300 W
Description
To meet the increasing requirements of the medical industry standard power supplies, we have taken on the power supply series RPS-300 with 300 watt output power of mean well into the program. These conform to international medical safety provisions and are approved for medical equipment. The level the BF (Body Floating) with direct patient contact in accordance with the guidelines IEC 60601-1, ANSI/AAMI IT 60601-1 and TÜV EN 60601-1 (Version 3.1) and meet the requirements of 2x MOP.
The power supplies offer an ideal standard power supply solution for application in medical technology, health care, and biochemical test devices, which require a very low leakage current, as well as for medical monitoring devices and autonomous robot. In addition, extremely low power consumption of less than 0.5W meets the requirements of the energy savings.
This text is machine translated.
The power supplies offer an ideal standard power supply solution for application in medical technology, health care, and biochemical test devices, which require a very low leakage current, as well as for medical monitoring devices and autonomous robot. In addition, extremely low power consumption of less than 0.5W meets the requirements of the energy savings.
This text is machine translated.
Features
- Closed design
- Pin strip connections for nylon crimp connectors
- Universal input
- 200 W with free air convection, 300W with 20.5CFM forced ventilation
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, overvoltage, Uberhitze
- Conforms to EN 60601-1
- Low idle power (by PS-ON function)
- Peak load function
- Internal auxiliary voltage 12 V/0.5A
- Stand-by: 5V/0.6A
