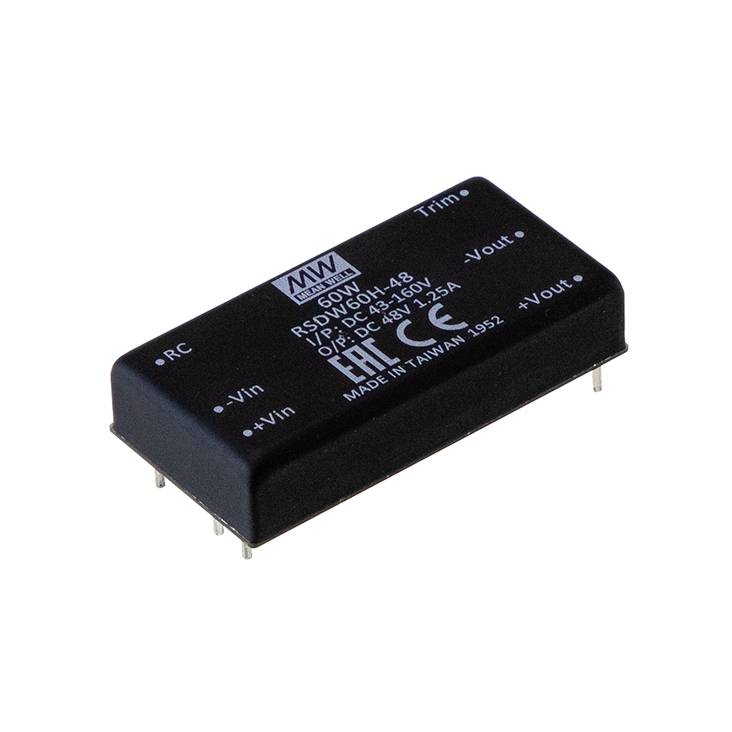

MEAN WELL RSDW60H-48 DC/DC converter (print) 1.25 A 60 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter (print)
- Type
RSDW60H-48
- Min. input voltage
40 V
- Input voltage (max.)
160 V
- No. of outputs
1 x
- Max. output current
1.25 A
- Output current (max.) - rounded
1.25 A
- Efficiency (max.)
89 %
60 W
- Insulation voltage
3.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Dim
(L x W x H) 50.8 x 25.4 x 10.5 mm
- Height
10.5 mm
- Length
50.8 mm
- Width
25.4 mm
- RoHS-compliant
Yes
- Output voltage (max.)
52.3 V DC
- Output voltage (min.)
43.2 V DC
- Weight
45 g
- Content
1 pc(s)
