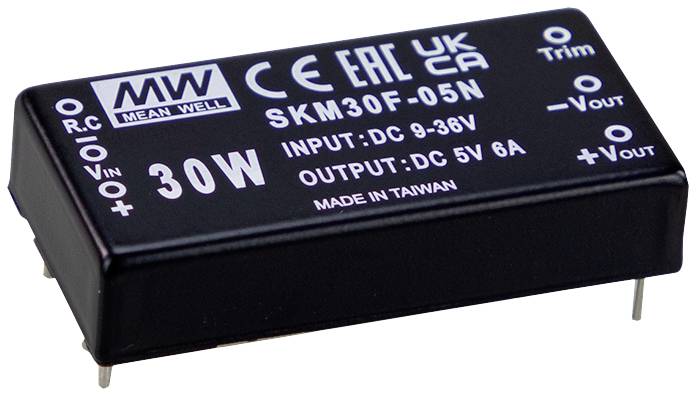

Image similar
MEAN WELL SKM30G-12N DC/DC converter (print) 2.5 A 30 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
DC/DC converter (print)
- Type
SKM30G-12N
- Min. input voltage
18 V
- Input voltage (max.)
75 V
- No. of outputs
1 x
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
- Efficiency (max.)
87.5 %
30 W
- Insulation voltage
3.000 V
- Connection
THT
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+90 °C
- Dim
(L x W x H) 50.8 x 25.4 x 11.2 mm
- Height
11.2 mm
- Length
50.8 mm
- Width
25.4 mm
- RoHS-compliant
Yes
- Output voltage (max.)
13.2 V DC
- Output voltage (min.)
10.8 V DC
- Weight
31 g
- Content
1 pc(s)
