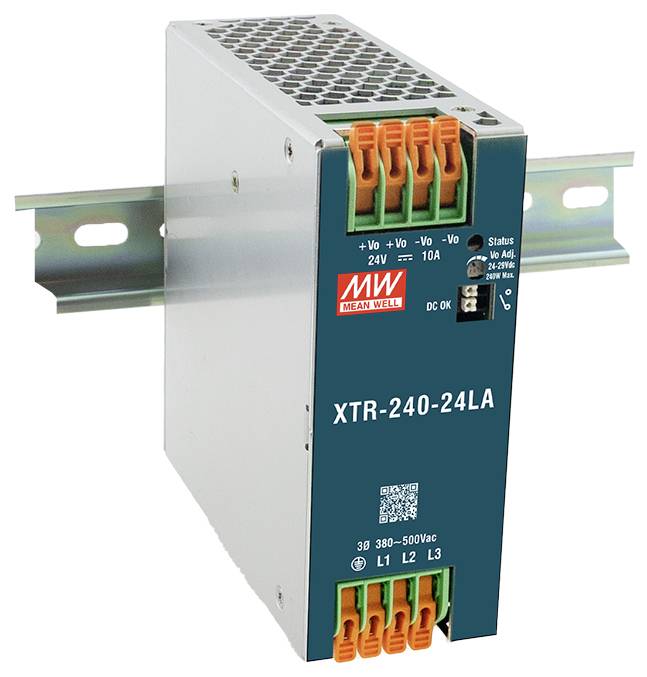

Name: MEAN WELL XTR-240-24LA Rail mounted PSU (DIN) 240 W
Brand: MEAN WELL
SKU: 3557913

Highlights & Details

Mean Well AC/DC industrial power supply unit 240W 24V 10A

Output /
Power 240 W

Technical specifications

Mains connection/phases II/III.

Product type: Rail mounted PSU (DIN)

Input voltage (max.): 600 V AC
800 V DC

Min. input voltage: 320 V AC
450 V DC

Dim: (L x W x H) 125 x 48 x 125.2 mm

: 240 W

Efficiency to: 92.5 %

Protection class: I

Output voltage 1: 24 V

Output current 1: 10.000 A

Operating temperature (max.): 85 °C

Operating temperature (min.): -40 °C

Weight: 800 g

Insulation voltage: INSULATION VOLTAGE I/P-O/P:4,870 V
INSULATION VOLTAGE I/P-FG:2,500 V
INSULATION VOLTAGE O/P-FG:500 V

Width: 48 mm

Height: 125.2 mm

Length: 125 mm

Type: XTR-240-24LA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3557913 MEAN WELL XTR-240-24LA Rail mounted PSU (DIN) 240 W

User & Safety Instructions

User & Safety Instructions 3557913 MEAN WELL XTR-240-24LA Rail mounted PSU (DIN) 240 W

Description

The XTR-240 series is an ultra-slim and highly reliable industrial 240W AC/DC DIN rail power supply with 3-phase 320-600Vac input . The main features of this series are a slim 48 mm housing that saves space in the end system, a maximum efficiency of 93.5% and a low standby power consumption of <2.5W for energy savings and carbon reduction. It offers a constant power output with up to 150% peak power, fanless design, ultra-wide operating temperature range of -40 to +85°C (up to +60°C at full load), OVCIII conformity, parallel function up to 960W (on request), ultra-low switch-on current of <10A, built-in DC OK and ORing FET (optional), PCB coating provides basic moisture and dust protection, and has several terminal blocks to choose from. With comprehensive protection features, full security certifications, the XTR-240 series is a compact, powerful and extremely reliable DIN rail power supply. - Mean Well

This text is machine translated.

Description

The XTR-240 series is an ultra-slim and highly reliable industrial 240W AC/DC DIN rail power supply with 3-phase 320-600Vac input . The main features of this series are a slim 48 mm housing that saves space in the end system, a maximum efficiency of 93.5% and a low standby power consumption of <2.5W for energy savings and carbon reduction. It offers a constant power output with up to 150% peak power, fanless design, ultra-wide operating temperature range of -40 to +85°C (up to +60°C at full load), OVCIII conformity, parallel function up to 960W (on request), ultra-low switch-on current of <10A, built-in DC OK and ORing FET (optional), PCB coating provides basic moisture and dust protection, and has several terminal blocks to choose from. With comprehensive protection features, full security certifications, the XTR-240 series is a compact, powerful and extremely reliable DIN rail power supply. - Mean Well
