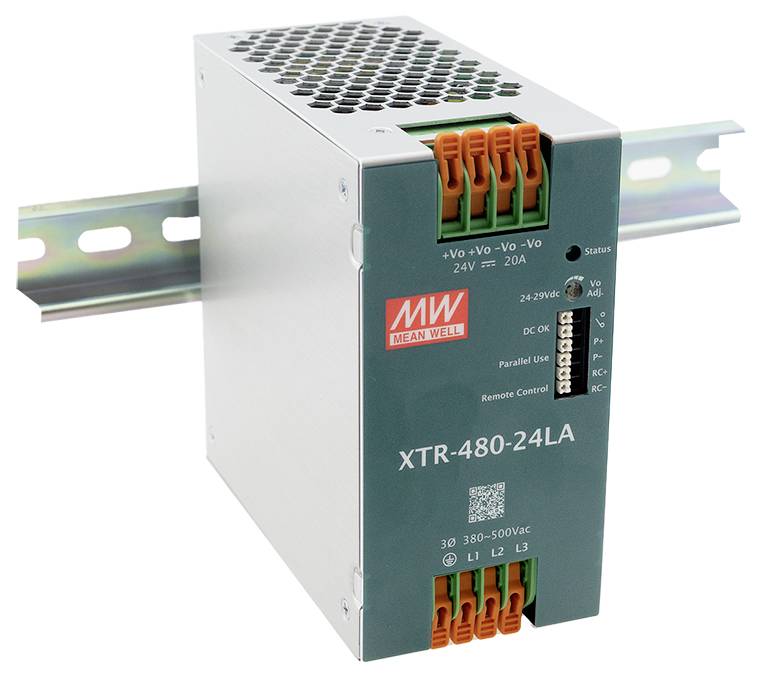

Name: MEAN WELL XTR-480-24LA Rail mounted PSU (DIN) 480 W
Brand: MEAN WELL
SKU: 3557926

Highlights & Details

Mean Well AC/DC-industrial power supply 480W 24V 20A

Output /
Power 480 W

Technical specifications

Mains connection/phases II/III.

Product type: Rail mounted PSU (DIN)

Input voltage (max.): 600 V AC
800 V DC

Min. input voltage: 320 V AC
450 V DC

Dim: (L x W x H) 125 x 63 x 125.2 mm

: 480 W

Efficiency to: 94 %

Protection class: I

Output voltage 1: 24 V

Output current 1: 20.000 A

Operating temperature (max.): 85 °C

Operating temperature (min.): -40 °C

Weight: 1300 g

Insulation voltage: INSULATION VOLTAGE I/P-O/P:4,870 V
INSULATION VOLTAGE I/P-FG:2,500 V
INSULATION VOLTAGE O/P-FG:500 V

Width: 63 mm

Height: 125.2 mm

Length: 125 mm

Type: XTR-480-24LA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3557926 MEAN WELL XTR-480-24LA Rail mounted PSU (DIN) 480 W

User & Safety Instructions

User & Safety Instructions 3557926 MEAN WELL XTR-480-24LA Rail mounted PSU (DIN) 480 W

Description

The XTR-480 series is an ultra-thin and highly reliable industrial 480W AC/DC DIN rail power supply with 3-phase 320-600Vac input . The main features of this series include a narrow housing of 63 mm that saves installation space in the end system, a maximum efficiency of 95.5% and a low standby power consumption of <3.1 W by remote control for energy saving and carbon reduction. It offers a constant current output with up to 200% peak power; fan-free design, ultra-wide operating temperature range of -40 to +85°C (up to +60°© at full load), OVCIII-conformity, parallel function up to 1920W, ultra-low switch-on current of <10A, built-in Remote Control, DC OK and ORing FET, internal PCB coating provides basic moisture and dust protection, and there are several terminal blocks to choose from. With comprehensive protection features and full security certifications, the XTR-480 series is a compact, powerful and extremely reliable DIN rail power supply. - Mean Well

This text is machine translated.

Description

The XTR-480 series is an ultra-thin and highly reliable industrial 480W AC/DC DIN rail power supply with 3-phase 320-600Vac input . The main features of this series include a narrow housing of 63 mm that saves installation space in the end system, a maximum efficiency of 95.5% and a low standby power consumption of <3.1 W by remote control for energy saving and carbon reduction. It offers a constant current output with up to 200% peak power; fan-free design, ultra-wide operating temperature range of -40 to +85°C (up to +60°© at full load), OVCIII-conformity, parallel function up to 1920W, ultra-low switch-on current of <10A, built-in Remote Control, DC OK and ORing FET, internal PCB coating provides basic moisture and dust protection, and there are several terminal blocks to choose from. With comprehensive protection features and full security certifications, the XTR-480 series is a compact, powerful and extremely reliable DIN rail power supply. - Mean Well
