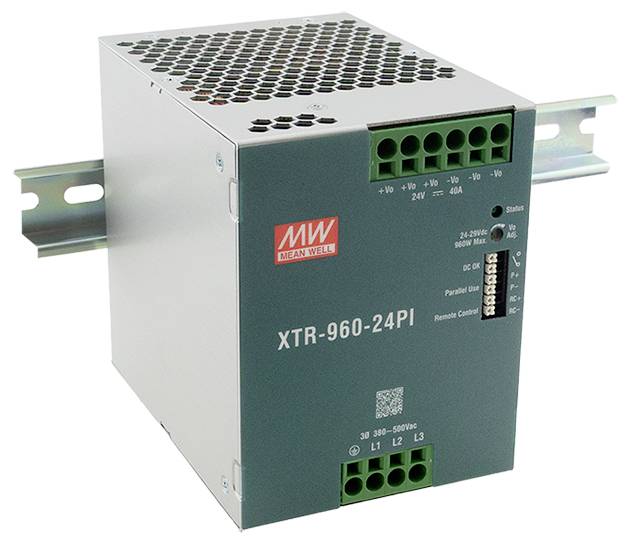

Name: MEAN WELL XTR-960-24PI Rail mounted PSU (DIN) 960 W
Brand: MEAN WELL
SKU: 3557939

Highlights & Details

Mean Well AC/DC-industrial power supply DIN rail 960W 24V 40A

Output /
Power 960 W

Technical specifications

Mains connection/phases II/III.

Product type: Rail mounted PSU (DIN)

Input voltage (max.): 600 V AC
800 V DC

Min. input voltage: 320 V AC
450 V DC

Dim: (L x W x H) 132 x 96 x 125.2 mm

: 960 W

Efficiency to: 95 %

Protection class: I

Output voltage 1: 24 V

Output current 1: 40.000 A

Operating temperature (max.): 85 °C

Operating temperature (min.): -40 °C

Weight: 1800 g

Insulation voltage: INSULATION VOLTAGE I/P-O/P:4,870 V
INSULATION VOLTAGE I/P-FG:2,500 V
INSULATION VOLTAGE O/P-FG:500 V

Width: 96 mm

Height: 125.2 mm

Length: 132 mm

Type: XTR-960-24PI

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3557939 MEAN WELL XTR-960-24PI Rail mounted PSU (DIN) 960 W

User & Safety Instructions

User & Safety Instructions 3557939 MEAN WELL XTR-960-24PI Rail mounted PSU (DIN) 960 W

Description

The XTR-960 series is an ultra-slim and highly reliable 960W AC/DC DIN rail power supply with 3-phase 320-600Vac input . The main features of this series include a narrow housing of 96 mm that saves installation space in the end system, a maximum efficiency of 96% and a low standby power consumption of <3.1 W by remote control for energy saving and carbon reduction. It offers a constant current output with up to 200% peak power; fan-less design, ultra-wide operating temperature range from -40 to +85C (up to +60°C at full load), OVCIII-conformity, parallel-function up to 3840W, ultra-low switch-on current of <10A, built-in Remote Control, DC OK and ORing FET, internal PCB coating provides basic moisture and dust protection, and there are several terminal blocks to choose from. With comprehensive protection features and full security certifications, the XTR-960 series is a compact, powerful and extremely reliable DIN rail power supply. - Mean Well

This text is machine translated.

Description

The XTR-960 series is an ultra-slim and highly reliable 960W AC/DC DIN rail power supply with 3-phase 320-600Vac input . The main features of this series include a narrow housing of 96 mm that saves installation space in the end system, a maximum efficiency of 96% and a low standby power consumption of <3.1 W by remote control for energy saving and carbon reduction. It offers a constant current output with up to 200% peak power; fan-less design, ultra-wide operating temperature range from -40 to +85C (up to +60°C at full load), OVCIII-conformity, parallel-function up to 3840W, ultra-low switch-on current of <10A, built-in Remote Control, DC OK and ORing FET, internal PCB coating provides basic moisture and dust protection, and there are several terminal blocks to choose from. With comprehensive protection features and full security certifications, the XTR-960 series is a compact, powerful and extremely reliable DIN rail power supply. - Mean Well

This text is machine translated.
