Megaman MM76754 MM76754 LED recessed light 6 W Colours (LEDs): White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Megaman LED downlight 840, IP65 MM76754
- Power= 6 W
- Total luminous flux= 450 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Product type
LED recessed light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
6 W
6 W
4000 K
- Colour
White
450 lm
- Total luminous flux
450 lm
- Light features
Dimmable
- Protection class
II
IP65
- Factory colour
White
- Material
Plastic
- Dim
(Ø x H) 83 mm x 51.00 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Width
83.00 mm
- Height
51.00 mm
- Length
51.00 mm
- (Ø)
83 mm
- Rated luminous flux
450 lm
- Recess length
51 mm
- Recess width
68 mm
- Recess depth
51 mm
- Nominal voltage
230 V
- Recess diameter
68 mm
- Number of pins
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3361721 Megaman MM76754 MM76754 LED recessed light 6 W Colours (LEDs): White
User & Safety Instructions
User & Safety Instructions 3361721 Megaman MM76754 MM76754 LED recessed light 6 W Colours (LEDs): White
Description

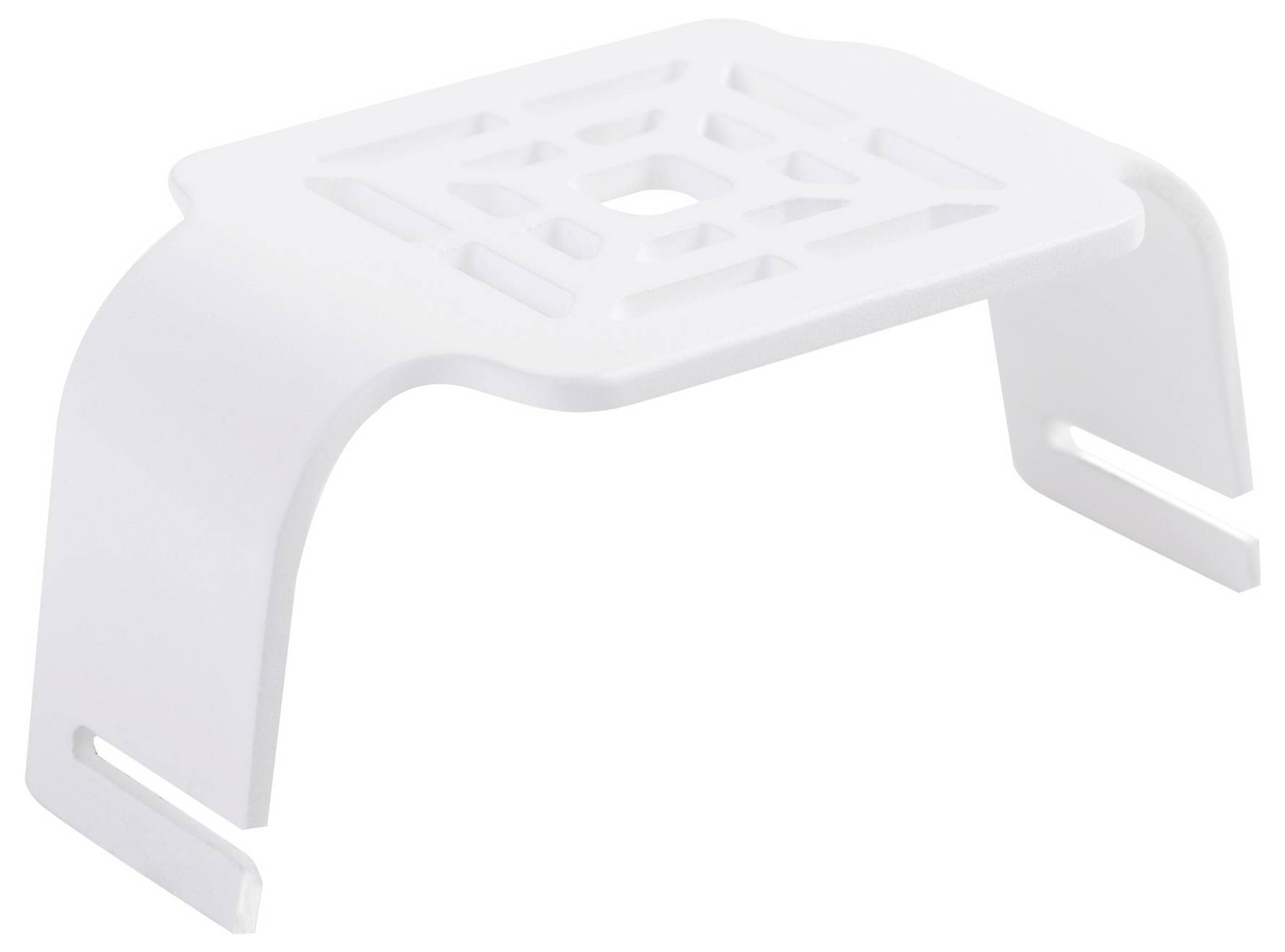

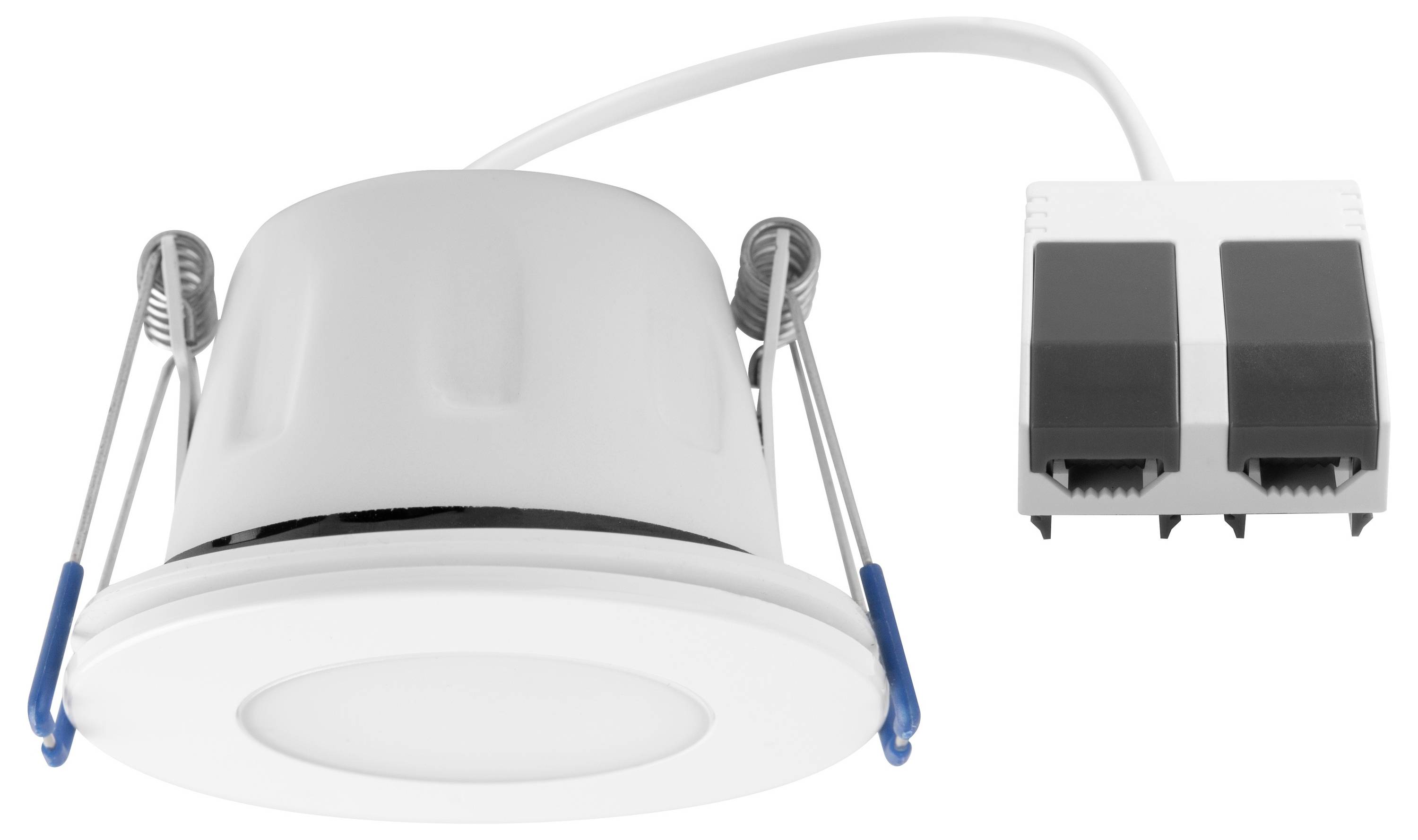

Universally usable LED downlight IP65 from 100% to 5% dimmable. Suitable for damp rooms and for ceiling mounting in wet cells. The lamp is fire-resistant for up to 90 minutes according to BS476-21:198 (in accordance with EN 1365-2:2014). Incl. Separate 230V connection box with quick terminals and spacers for mounting in insulated ceilings.
