MegaSat HD 644 T2 DVB-T2 receiver USB (front) No. of tuners: 1
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

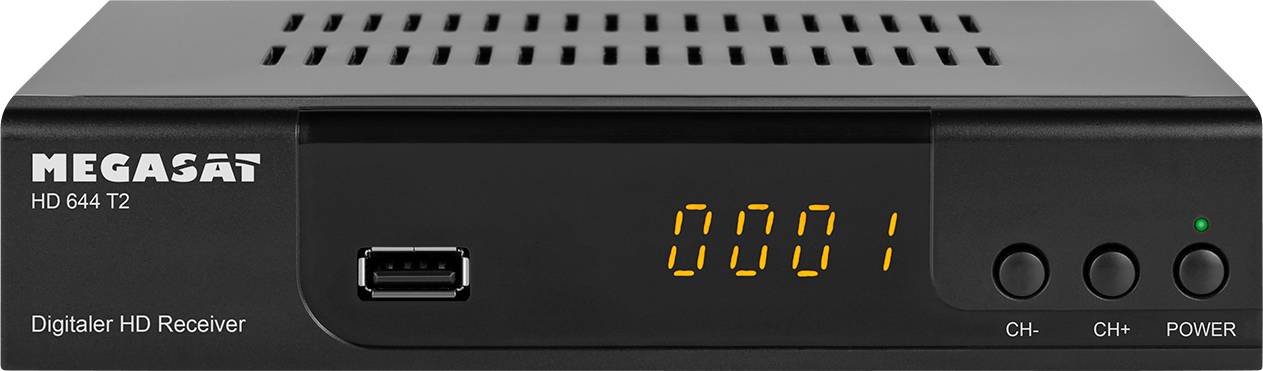

Megasat HD 644 T2 DVB-T2 Receiver
- DVB-T2 receiver
- USB (front)
Technical specifications
- Product type
DVB-T2 receiver
- TV receiver features
USB (front)
- Tuners
1
- Wi-Fi
no
- No. of USB ports
1 x
- SCART connections
1
- Interfaces
HDMI™
Coax connector
SCART
USB A (USB 2.0)
- Width
168 mm
- Height
38 mm
- Depth
93 mm
- Weight
234 g
- Operating voltage
230 V
- Factory colour
Black
- Dim
(W x H x D) 168 x 38 x 93 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2348940 MegaSat HD 644 T2 DVB-T2 receiver USB (front) No. of tuners: 1
User & Safety Instructions
User & Safety Instructions 2348940 MegaSat HD 644 T2 DVB-T2 receiver USB (front) No. of tuners: 1
Description
HD receiver for the reception of all free television and radio programs in the terrestrial network (DVB-T2 HD).
The DVB-T2 receiver delivers a brilliant resolution of up to 1080p (Full HD) via the HDMI output.
The USB connection on the front side enables a simple playback of video, image and music files via external storage media such as USB stick or external hard disk. Future firmware updates can also be easily installed via the interface.
Energy efficient thanks to the low power consumption in standby mode as well as when running.
This text is machine translated.
The DVB-T2 receiver delivers a brilliant resolution of up to 1080p (Full HD) via the HDMI output.
The USB connection on the front side enables a simple playback of video, image and music files via external storage media such as USB stick or external hard disk. Future firmware updates can also be easily installed via the interface.
Energy efficient thanks to the low power consumption in standby mode as well as when running.
This text is machine translated.
Features
- Powerful dual MIPS CPU
- SDRAM: 512 MB DDR-2
- demodulation: 256 QAM, 64 QAM, 16 QAM
- Standards: HEVC / H.264 / H. 265 / MPEG-4 / MPEG-2 / AVS / AVS+ / VC1 HD
- 7-segment display (4-digit)
- 3-button front operation
- 1 LED (operation/standby)
- Resolution up to 1080p (full HD)
- Image formats: 4:3 / 16:9
- 32-bit color screen menu
- Media playback via USB
- Favorites lists
- Multilingual menu
- EPG
- Child lock
- Video text
- 1 x HDMI
- 1 x SCART
- 1 x USB 2.0
- 1 x S/PDIF (coaxial)
- 1 x antenna input
- 1 x antenna output
- 1 x 12 Volt DC input
Scope of delivery
- Megasat HD 644 T2 DVB-T2 Receiver

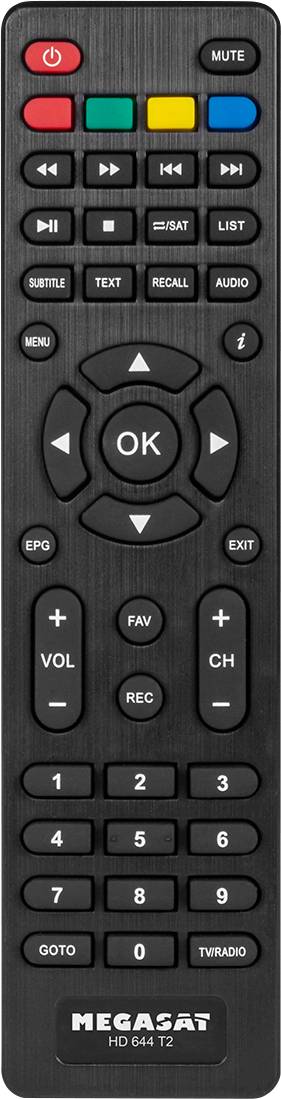

- Remote control
- Batteries
- Power supply unit
- User manual
