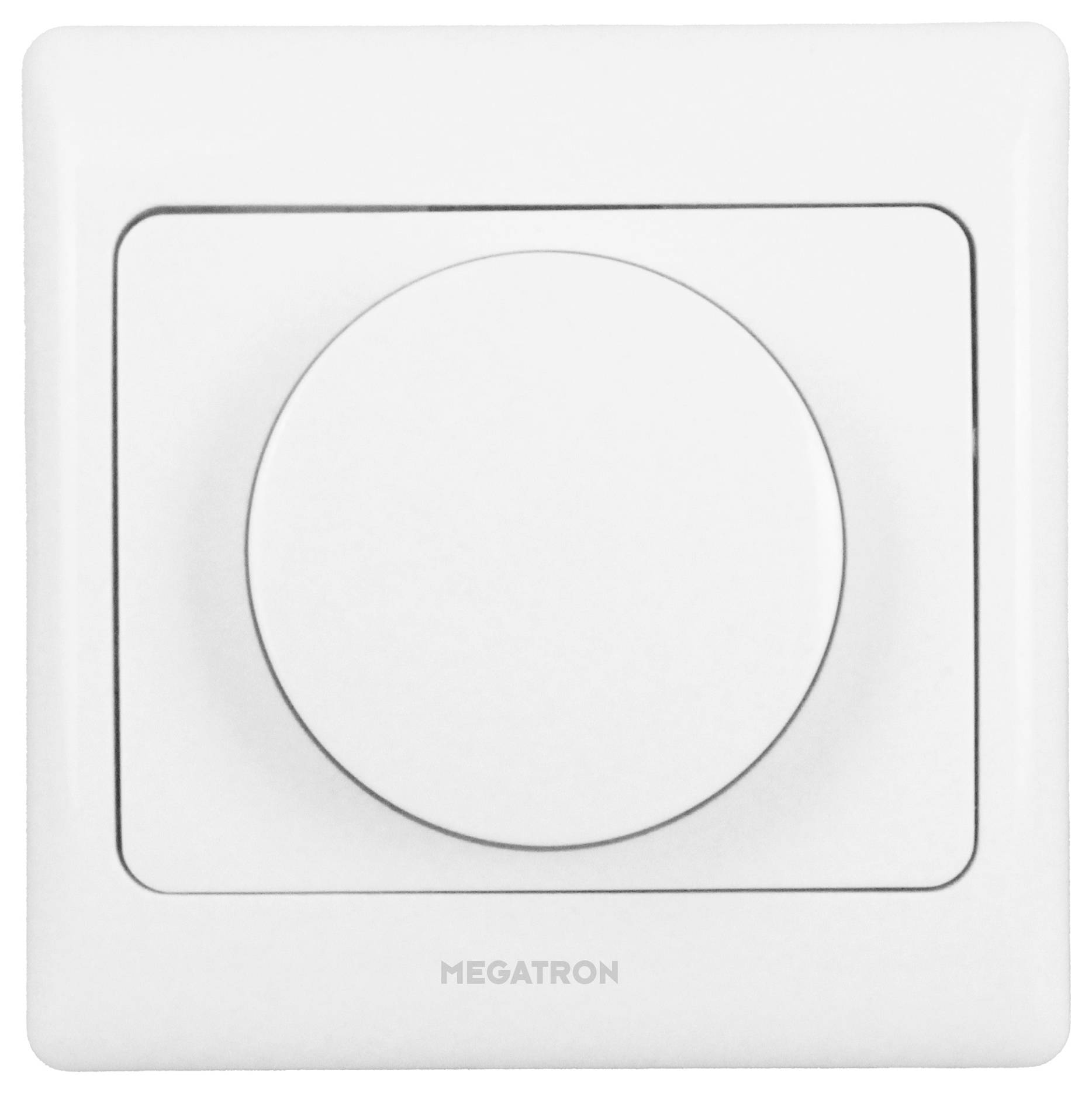

Megatron MT56052 LED dimmer Suitable for light bulbs: LED bulb
EAN:
Part number:
Item no:
Technical specifications
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: white
- Surface protection: Other
- Transparent: No.
- Design of surface: Matt
- Nominal voltage 220..250 V
- Connection type: Plug-in terminal
- Halogen-free: No.
- Frequency: 50 Hz
- Max. Switching capacity LED 300 W
- Min Depth of the device socket 46 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Dimming of phase section: Yes
- Dimming of leading edge: Yes
- Material quality: Thermoplastic
- Mounting type: Claw / screw attachment
- Suitable for protection class (IP): IP20
- Number of units: 1
- Extension input: No.
- Assembly: Base element with adapter plate
- Device width 58 mm
- Device height 64 mm
- Device depth 46 mm
- Load start: Universal
- Control mode: Rotary knob
- Wire cross-section: 1.5 mm²
- Can be used with button: No.
- Can be used with a motion detector: No.
- Can be used with presence detector: No.
- Can be used with timer/timer: No.
- Can be used with IR key: No.
- Light value storage: No.
- Can be used with radio button: No.
- APP control via Bluetooth: No.
- Series dimmer: Yes
- Min Adjustable brightness: Yes
- Product type
LED dimmer
- Suitable for light bulbs
LED bulb
- Switching capacity (LED)
300 W
- Dim
(W x H) 58 mm x 64 mm
- Width
58 mm
- Height
64 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550988 Megatron MT56052 LED dimmer Suitable for light bulbs: LED bulb
Description
Universal LED dimmer with rotary switch for LED light sources and white cover. Guaranteed compatibility with all LED-lamps and LED-lamps of Megaman, Megaman and LightMe. Excellent functionality even with most of the LED light sources of other makes. Also suitable for halogen and light bulbs. Linear, smooth and flicker-free dimming of 100 percent brightness till the lowest dimming level of the light source. White plastic cover in a simple, neutral design, which can be combined well with other switch series. The casing and the rotary knob can be removed, to be replaced by covers of other series of switches (no compatibility guarantee).
