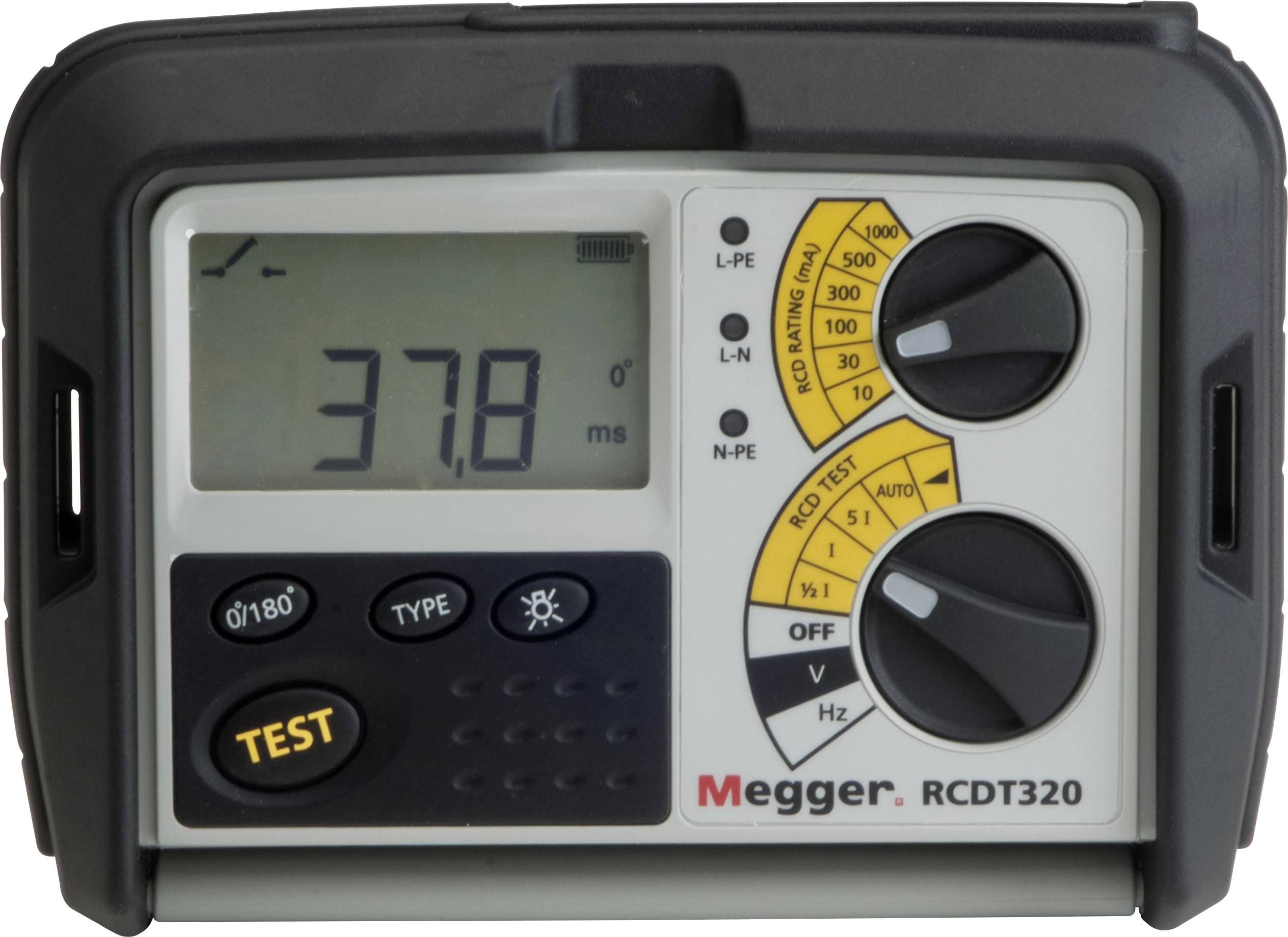

Megger RCDT320-SC RCD TESTER Electrical tester
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
RCDT300 series FI-circuit breaker test devices
- Measuring ranges: Tests RCDs with nominal currents of 10 mA, 30 mA, 100 mA, 300 mA, 500 mA and 1000 mA.
- RCD-types: For standard, pulsed DC current (type A) and selective FI-protection switches (type S).
- Ramp test: To measure the exact tripping current (current is slowly increased from 1/2 I to I.
- Automatic test (Auto sequence test): Automatic execution of 1/2I, I and 5I tests 0 and 180°C (Ideal if tester and RCD are far apart).
- Power input: Enables testing at 110 V power sources tapped at center (operating range: 50 V to 280 V).
- Safety: Three-phase safe, test lock from 300 V, safety lock and LED connection indicators.
Technical specifications
- Product type
Electrical tester
Manufacturer's standards (no certificate)
- Reading category
CAT III 300 V
- Dim
(L x W x H) 203 x 148 x 78 mm
- Weight
980 g
IP54
- Reading range (VDE)
RDC testing (AC, A)
Frequency
- DIN standard
DIN VDE 0413
- Display type
LCD
- Width
148 mm
- Height
78 mm
- Length
203 mm
- Test procedure
automated
- Type
RCDT320-SC RCD TESTER
- Features
RCD/FI testing
Documents & Downloads
Datasheet
Datasheet 3805513 Megger RCDT320-SC RCD TESTER Electrical tester
User & Safety Instructions
User & Safety Instructions 3805513 Megger RCDT320-SC RCD TESTER Electrical tester
Description
With the RCDT300-series the ½I-, I- and 5xI-tests can be done at general and selective fault-current protection devices with a nominal current of 30mA, 100 mA, 300 mA and 500 mA. The RCDT320 test device can also test current-safety devices with a nominal current of 10mA and 1000 mA. All devices are suitable for pulsed DC testing of FI-circuit breaker.
This text is machine translated.
This text is machine translated.

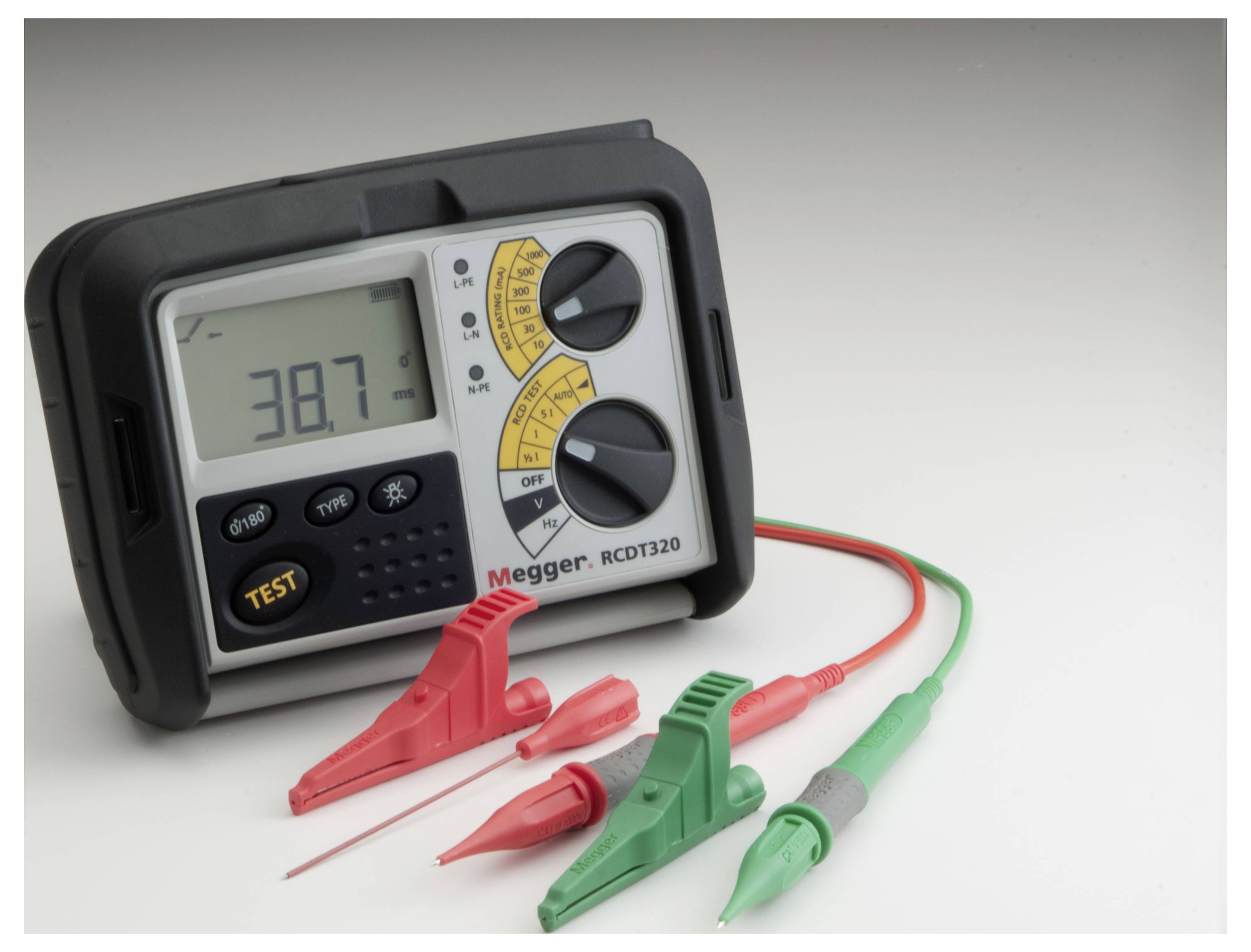

Scope of delivery
- RCDT320 Tester
- Mains test cable (CEE 7/7)
- 2-wire test lead with probes and clamps
- Calibration certificate
- Beam / wrist strap
