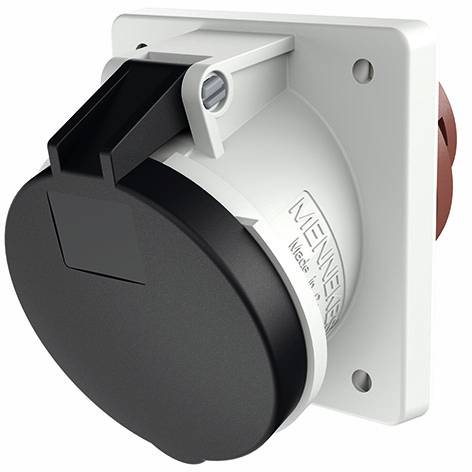

MENNEKES 1152A CEE add-on socket 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 63 A.
- RAL number: 9005
- Current according to UL/CSA (if UL version required): 60 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Connection technology: Screw terminal
- Mating direction: Angled
- Material: Plastic
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- Rated voltage: 499/500 V
- Rated frequency 50..60 Hz
- Flange size vertical 110 mm
- Hole spacing vertical 85 mm
- Flange size horizontal 106 mm
- Hole spacing horizontal 77 mm
- Product type
CEE add-on socket
IP44
- Content
1 pc(s)
- Number of pins
4
Documents & Downloads
Datasheet
Datasheet 3855936 MENNEKES 1152A CEE add-on socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3855936 MENNEKES 1152A CEE add-on socket 1 pc(s)
Description
63A4P 7H500V add-on socket TA IP 44 with frame clamp and X-CONTACT
