Image similar

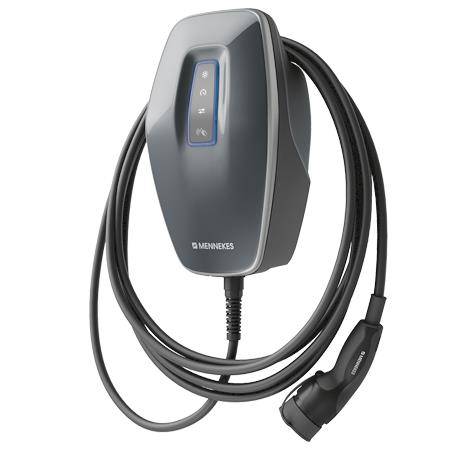

MENNEKES 1347112405BK Wallbox No. of ports 1 22 kW
EAN:
Part number:
Item no:
Technical specifications
- Housing material: Plastic
- Suitable for wall mounting: Yes
- 4G (LTE) wireless standard: Yes
- With display: No.
- Frequency: 50 Hz
- Compatible with Apple HomeKit: No.
- Compatible with Amazon Alexa: No.
- Compatible with Google Assistant: No.
- IFTTT support available: No.
- Suitable for floor mounting: No.
- Input voltage: 230 V
- Rated connection power 22 kW
- Number of loading points: 1
- Max. Power per charging point 22 kW
- Length of charging cable 0 m
- Suitable for pipe mounting: No.
- Portable: No.
- Number of charging sockets type 2: 1
- With house connection box (HAK): No.
- Charging cable permanently lockable on the charging station: No.
- DC fault current detection: Yes
- Contactor contact welding detection: Yes
- With circuit breaker: No.
- Network-compatible as Master: Yes
- Network-compatible as Extender: Yes
- Network connection via LAN: Yes
- Network connection via WLAN: Yes
- Mobile phone standard 5G: Yes
- With energy meter: Yes
- With key switch: No.
- With integrated RFID card reader: Yes
- NFC (Near Field Communication): No.
- Static load management integrated: Yes
- Suitable for dynamic load management: Yes
- Open Charge Point Protocol (OCPP) Version: 1.6
- Plug and charge (ISO 15118): Yes
- Operation and configuration via APP: YES
- Export of the load history: Yes
- Backend included: No.
- With MID-compatible energy meter: Yes
- True-to-law: No.
- Suitable for cable cross-sections of 10 mm²
- Product type
Wallbox
- No. of ports
1
- Charging capacity
22 kW
- No. of phases
3-phase
IP54
IK10
- Width
168 mm
- Height
226 mm
- Depth
402 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3836320 MENNEKES 1347112405BK Wallbox No. of ports 1 22 kW
User & Safety Instructions 3836320 MENNEKES 1347112405BK Wallbox No. of ports 1 22 kW
Description
AMTRON® 4Business 730 is the Wallbox for professional charging in the commercial sector with mobile phone modem. With flexible jaw connection via OCPP, the MENNEKES Wallbox AMTRON® 4Business 730 enables remote monitoring, control and comprehensive billing options. It is equipped with a mobile modem. The Wallbox possesses an integrated MID-counter, which can be read comfortably from outside. The access can be controlled flexibly via RFID authorization. The seamless integration into energy management systems is carried out via Modbus TCP/EEBUS. The Wallbox is prepared for ISO 15118 (PNC) and it is WLAN/LAN-enabled. Comfort and safety are included through APP operation, ground lighting, proximity and brightness sensor. The Wallbox can be designed individually by means of the exchangeable front cover from the accessories. As a socket version AMTRON® 4Business 730 also offers maximum flexibility in the selection of the charging cable. The AMTRON® 4Installers APP makes it easy for installers to configure, set up and manage the loading point. A black front cover is included as standard in the delivery.
