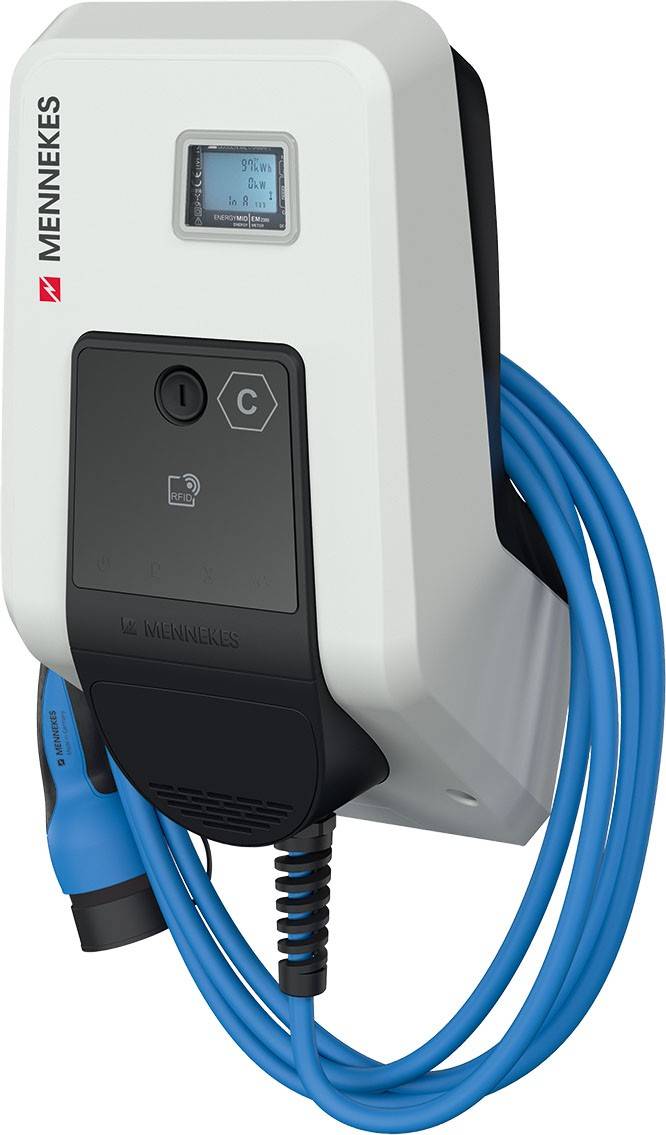

MENNEKES 1387202 Wallbox 22 kW
EAN:
Part number:
Item no:
Technical specifications
- Design connection system side: 3-phase
- Number of loading points: 1
- Max. Power per charging point 22 kW
- Rated connection power 22 kW
- Width 259 mm
- Height: 475 mm
- Depth: 220 mm
- Mounting type: Wall mounting
- Number of charging sockets type 2: 1
- Length of charging cable 8 m
- With house connection box (HAK): No.
- Number of FI switches type A: 1
- With circuit breaker: Yes
- With communication interface: Yes
- With energy meter: Yes
- Access control function: Yes
- With load management: Yes
- With display: No.
- Housing material: Plastic
- Protection class (IP) IP54
- Impact strength: IK10
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
Wallbox
- Charging capacity
22 kW
- No. of phases
3-phase
- Cable length
8 m
IP54
Manufacturer's declaration
- Width
259.00 mm
- Height
475.00 mm
- Depth
220.00 mm
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3158655 MENNEKES 1387202 Wallbox 22 kW
Description
AMTRON® Professional Wallboxes are perfectly suited to the requirements of the semi-public sector, such as your company car park or a customer parking lot. A strong overall package for the development of a future-ready charging infrastructure: High security requirements, customer-friendly operation, networking capability for the implementation of requirement-oriented billing, system monitoring and load management combined in one solution. The professional devices meet all legal requirements and are thus compliant with calibration law. The charging stations can be networked via LAN, in order thus to use the integrated MENNEKES load management. Through the integrated mobile phone modem in the Professional+ variants, a direct connection to back-end systems can be made for monitoring and billing. With the integrated Plug & Charge"
(PNC) function will make the future charging process even more convenient.
