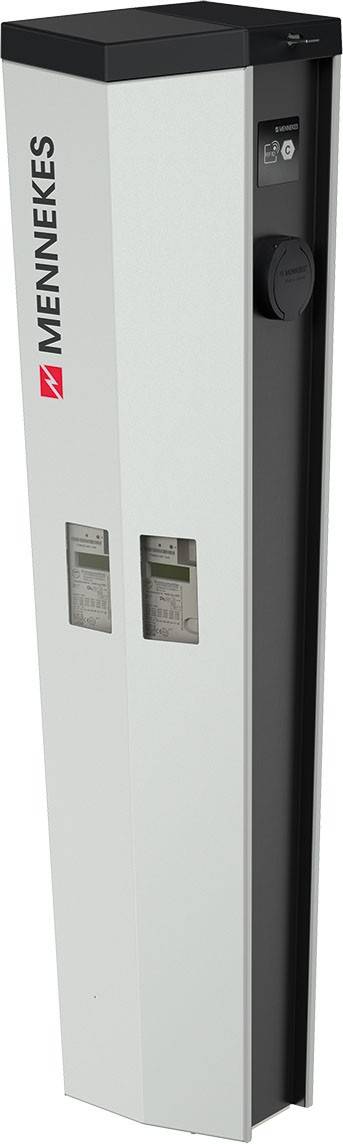

MENNEKES 140612412 Charging station 22 kW
EAN:
Part number:
Item no:
Technical specifications
- Design connection system side: 3-phase
- Number of loading points: 2
- Max. Power per charging point 22 kW
- Rated connection power 44 kW
- Width 352 mm
- Height: 1.362 mm
- Depth: 252 mm
- Mounting type: Floor mounting
- Number of charging sockets type 2: 2
- With house connection box (HAK): No.
- Number of FI switches type A: 2
- With circuit breaker: Yes
- With communication interface: Yes
- With energy meter: Yes
- Access control function: Yes
- With load management: Yes
- With display: No.
- Material of housing: Steel
- Protection class (IP) IP54
- Impact strength: IK10
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
Charging station
- Charging capacity
22 kW
- No. of phases
3-phase
IP54
Manufacturer's declaration
- Width
352.00 mm
- Height
1.36 mm
- Depth
252.00 mm
- Material
Steel
- Mounting type
Floor fixed
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3158683 MENNEKES 140612412 Charging station 22 kW
Description
AMEDIO provides a strong complete package for the development of a future-ready charging infrastructure: High safety requirements, customer-friendly operation, networking capability for the implementation of requirement-oriented billing, system monitoring and load management combined in one quality solution. AMEDIO has been specially developed for companies and professionals who want to build up a charging infrastructure for employees and customers. The charging stations can be networked via LAN, in order thus to use the integrated MENNEKES load management. Through the integrated mobile phone modem in the Professional+ variants, a direct connection to back-end systems can be made for monitoring and billing.
