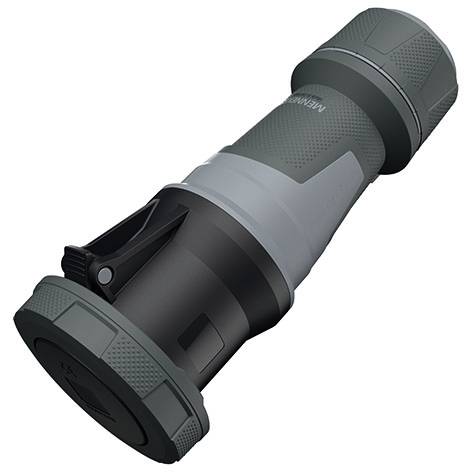

MENNEKES 14220P CEE connector 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 125 A.
- RAL number: 9005
- Current according to UL/CSA (if UL version required): 100 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Connection technology: Screw terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- Product type
CEE connector
IP67
- Content
1 pc(s)
- Number of pins
4
Documents & Downloads
Datasheet
Datasheet 3855957 MENNEKES 14220P CEE connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3855957 MENNEKES 14220P CEE connector 1 pc(s)
Description
125A4P 7H500V coupler PowerTOP Xtra IP 67 with pilot contact, rubberized grip area screwed with integrated strain relief and sealing X-CONTACT housing with threaded closure and safety slide connectors Device may only be operated with electrical locking via pilot contact!
