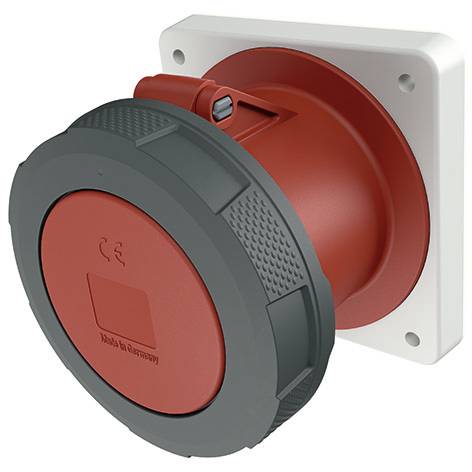

MENNEKES 1461 CEE add-on socket 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 125 A.
- RAL number: 3013
- Current according to UL/CSA (if UL version required): 100 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Connection technology: Screw terminal
- With straight plug
- Material: Plastic
- Contact material: Other
- Military version: No.
- Surface treatment contacts: Untreated
- Rated voltage: 399/400 V
- Rated frequency 50..60 Hz
- Flange size vertical 130 mm
- Hole spacing vertical 104 mm
- Flange size horizontal 130 mm
- Hole spacing horizontal 104 mm
- Product type
CEE add-on socket
IP67
- Content
1 pc(s)
- Number of pins
5
Documents & Downloads
Datasheet
Datasheet 3856424 MENNEKES 1461 CEE add-on socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3856424 MENNEKES 1461 CEE add-on socket 1 pc(s)
Description
125A5P 6H400V mounted socket TA IP 67 with frame terminal and X-CONTACT
