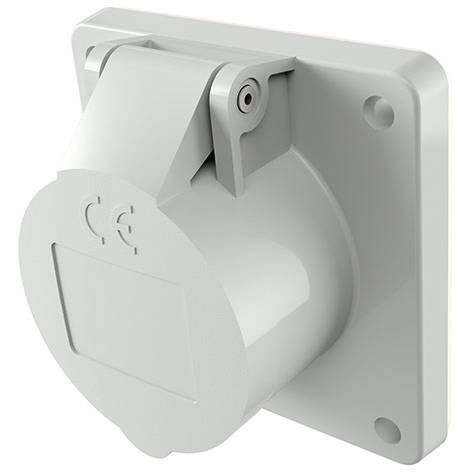

MENNEKES 1603 CEE add-on socket 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Current according to UL/CSA (if UL version required): 20 A.
- Voltage according to EN 60309-2: 40-50 V (50+60 Hz) white
- Time setting 12 h
- Colour code: Grey
- Connection technology: Screw terminal
- With straight plug
- Material: Plastic
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- Rated voltage: 40/50 V
- Rated frequency 50..60 Hz
- Flange size vertical 75 mm
- Hole spacing vertical 60 mm
- Flange size horizontal 75 mm
- Hole spacing horizontal 60 mm
- Product type
CEE add-on socket
IP44
- Content
1 pc(s)
- Number of pins
2
Documents & Downloads
Datasheet
Datasheet 3856515 MENNEKES 1603 CEE add-on socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3856515 MENNEKES 1603 CEE add-on socket 1 pc(s)
Description
16A2P12H50V SURFACE-MOUNT SOCKET IP 44 FL. 75 x 75 mm BL. 60 x 60 mm
