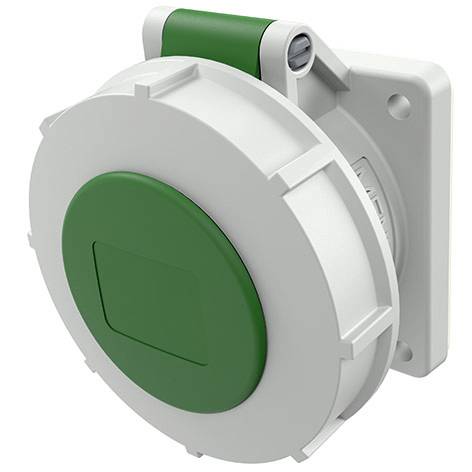

MENNEKES 1714 CEE add-on socket 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Current according to UL/CSA (if UL version required): 20 A.
- Voltage according to EN 60309-2: 50-500 V (100-300 Hz) green
- Time setting 10 h
- Colour code: Green
- Connection technology: Screw less terminal
- With straight plug
- Material: Plastic
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- Rated voltage: 50/500 V
- Rated frequency 100..300 Hz
- Flange size vertical 75 mm
- Hole spacing vertical 60 mm
- Flange size horizontal 75 mm
- Hole spacing horizontal 60 mm
- Product type
CEE add-on socket
IP67
- Content
1 pc(s)
- Number of pins
4
Documents & Downloads
Datasheet
Datasheet 3857098 MENNEKES 1714 CEE add-on socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3857098 MENNEKES 1714 CEE add-on socket 1 pc(s)
Description
16A4P10Hlarger than 50-500V100-300Hz mounted socket TwinContact IP 67 screwless connection technology FL. 75 x 75 mm BL. 60 x 60 mm
