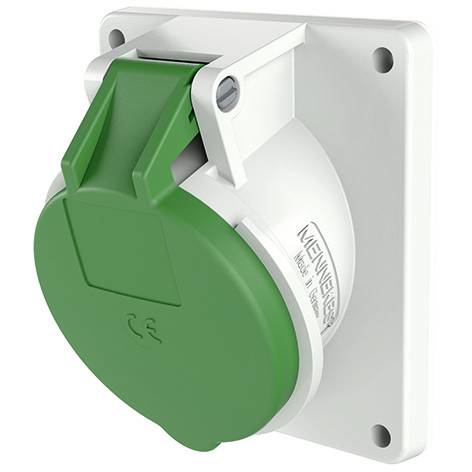

MENNEKES 1743 CEE add-on socket 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- Current according to UL/CSA (if UL version required): 30 A.
- Voltage according to EN 60309-2: 50-500 V (greater than 300-500 Hz) green
- Time setting 2 h
- Colour code: Green
- Connection technology: Screw less terminal
- Mating direction: Angled
- Material: Plastic
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- Rated voltage: 50/500 V
- Rated frequency 300..500 Hz
- Flange size vertical 100 mm
- Hole spacing vertical 85 mm
- Flange size horizontal 92 mm
- Hole spacing horizontal 77 mm
- Product type
CEE add-on socket
IP44
- Content
1 pc(s)
- Number of pins
4
Documents & Downloads
Datasheet
Datasheet 3857097 MENNEKES 1743 CEE add-on socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3857097 MENNEKES 1743 CEE add-on socket 1 pc(s)
Description
32A4p 2Hlarger than 50-500V300-500Hz mounted socket TwinContact IP 44 screwless connection technology Inclination 20° FL. 100 x 92 mm BL. 85 x 77 mm
