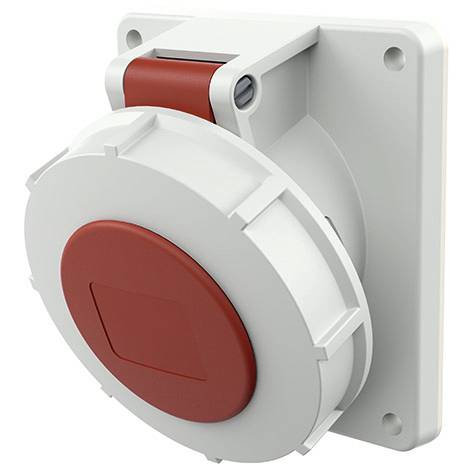

MENNEKES 1808 CEE add-on socket 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- RAL number: 3013
- Current according to UL/CSA (if UL version required): 30 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Connection technology: Screw less terminal
- Mating direction: Angled
- Material: Plastic
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- Rated voltage: 399/400 V
- Rated frequency 50..60 Hz
- Flange size vertical 100 mm
- Hole spacing vertical 85 mm
- Flange size horizontal 92 mm
- Hole spacing horizontal 77 mm
- Product type
CEE add-on socket
IP67
- Content
1 pc(s)
- Number of pins
5
Documents & Downloads
Datasheet
Datasheet 3856841 MENNEKES 1808 CEE add-on socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3856841 MENNEKES 1808 CEE add-on socket 1 pc(s)
Description
32A5P 6H400V attachment socket TwinContact IP 67 screwless connection technology tilting 20° FL. 100 x 92 mm BL. 85 x 77 mm
