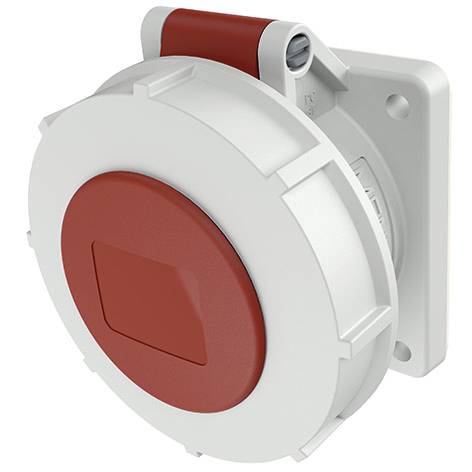

MENNEKES 2123A CEE add-on socket 10 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 32 A.
- RAL number: 3013
- Current according to UL/CSA (if UL version required): 30 A.
- Voltage according to EN 60309-2: 400-440 V (50+60 Hz) red
- Time setting 3 h
- Colour code: Red
- Connection technology: Screw terminal
- With straight plug
- Material: Plastic
- Contact material: Other
- Military version: No.
- Surface treatment contacts: Untreated
- Rated voltage: 400/440 V
- Rated frequency 50..60 Hz
- Flange size vertical 85 mm
- Hole spacing vertical 60 mm
- Flange size horizontal 75 mm
- Hole spacing horizontal 60 mm
- Product type
CEE add-on socket
IP67
- Content
10 pc(s)
- Number of pins
4
Documents & Downloads
Datasheet
Datasheet 3854742 MENNEKES 2123A CEE add-on socket 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3854742 MENNEKES 2123A CEE add-on socket 10 pc(s)
Description
32A4P 3H380/440 V MOUNTING SOCKET TA IP 67 HW/VN
This text is machine translated.
This text is machine translated.
