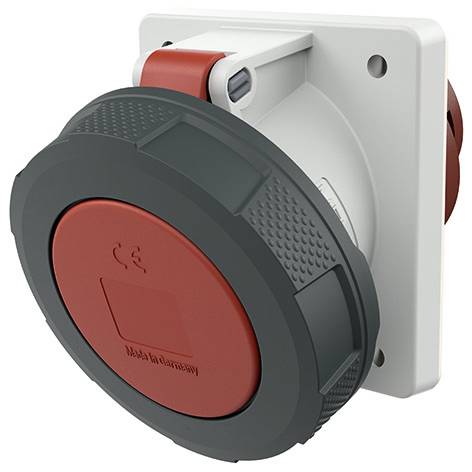

MENNEKES 2181A CEE add-on socket 5 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 63 A.
- RAL number: 3013
- Current according to UL/CSA (if UL version required): 60 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 9 h
- Colour code: Red
- Connection technology: Screw terminal
- Mating direction: Angled
- Material: Plastic
- Contact material CuZn
- Military version: No.
- Surface treatment contacts: Untreated
- Rated voltage: 399/400 V
- Rated frequency 50..60 Hz
- Flange size vertical 110 mm
- Hole spacing vertical 85 mm
- Flange size horizontal 106 mm
- Hole spacing horizontal 77 mm
- Product type
CEE add-on socket
IP67
- Content
5 pc(s)
- Number of pins
3
Documents & Downloads
Datasheet
Datasheet 3856447 MENNEKES 2181A CEE add-on socket 5 pc(s)
User & Safety Instructions
User & Safety Instructions 3856447 MENNEKES 2181A CEE add-on socket 5 pc(s)
Description
63A3P 9H400V Mounted socket TA IP 67 with frame terminal and X-CONTACT
