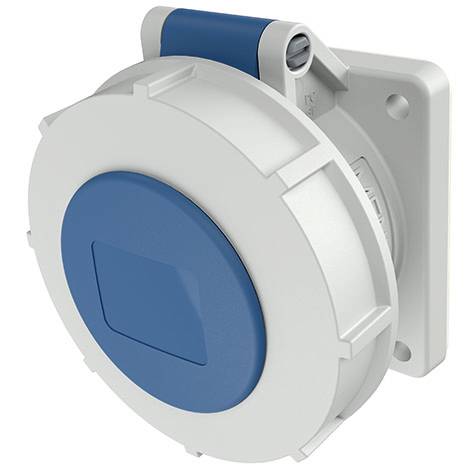

MENNEKES 227A CEE add-on socket 10 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- RAL number: 3013
- Current according to UL/CSA (if UL version required): 20 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 9 h
- Colour code: Blue
- Connection technology: Screw terminal
- With straight plug
- Material: Plastic
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- Rated voltage: 229/230 V
- Rated frequency 50..60 Hz
- Flange size vertical 75 mm
- Hole spacing vertical 60 mm
- Flange size horizontal 75 mm
- Hole spacing horizontal 60 mm
- Product type
CEE add-on socket
IP67
- Content
10 pc(s)
- Number of pins
5
Documents & Downloads
Datasheet
Datasheet 3854744 MENNEKES 227A CEE add-on socket 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3854744 MENNEKES 227A CEE add-on socket 10 pc(s)
Description
16A5P 9H230V PANEL MOUNT SOCKET TA IP 67
