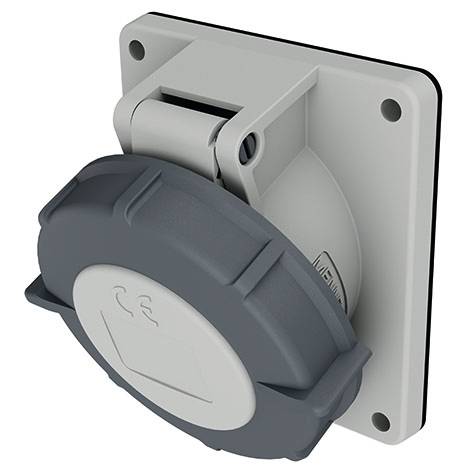

MENNEKES 3650 CEE add-on socket 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Current according to UL/CSA (if UL version required): 20 A.
- Voltage according to EN 60309-2: Greater than 50 V gray
- Time setting 1 h
- Colour code: Grey
- Connection technology: Screw terminal
- Mating direction: Angled
- Material: Plastic
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- Rated voltage: 50/500 V
- Rated frequency 40..50 Hz
- Flange size vertical 100 mm
- Hole spacing vertical 85 mm
- Flange size horizontal 92 mm
- Hole spacing horizontal 77 mm
- Product type
CEE add-on socket
IP67
- Content
1 pc(s)
- Number of pins
5
Documents & Downloads
Datasheet
Datasheet 3855833 MENNEKES 3650 CEE add-on socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3855833 MENNEKES 3650 CEE add-on socket 1 pc(s)
Description
Mounting socket 16A 5p 1h 50-500V IP67 screw connection technology FL. 100 x 92 mm BL. 85 x 77 mm
