MENNEKES 5602407G CEE wall socket 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- IEC current 16 A.
- Current according to UL/CSA (if UL version required): 20 A.
- Voltage according to EN 60309-2: 500 V (50+60 Hz) black
- Time setting 7 h
- Colour code: Black
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- Protection: Mixed
- Housing material: Plastic
- Switch: Mechanical locking
- With FI-circuit breaker: No.
- Empty spaces on support rail: No.
- Design: Lower part and upper part
- Product type
CEE wall socket
IP67
- Content
1 pc(s)
- Number of pins
4
Documents & Downloads
Datasheet
Datasheet 3856907 MENNEKES 5602407G CEE wall socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3856907 MENNEKES 5602407G CEE wall socket 1 pc(s)
Description

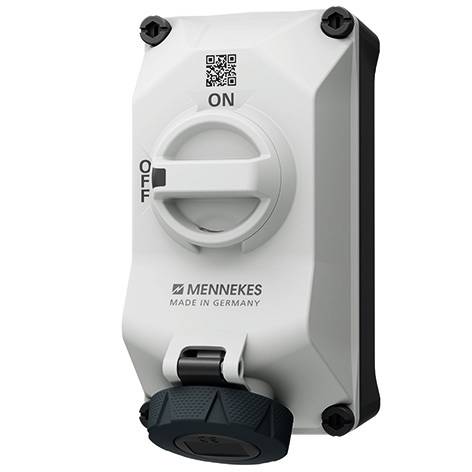

MENNEKES wall socket DUO 16A 4P 7h 500V IP67/IP69 X-CONTACT can be switched off ready to connect wired plastic housing: Dimensions 225x118 mm (L x B) Lockable with upper part padlock gray RAL 7035 lower part black RAL 9005 with double thread cover screws Equipment: Circuit breaker 3P + N + PE feed: Lower part can be rotated 180° Connection possible from above and below Delivery state 2 x M25 below (locked) 1 x M25 and 1 x M32 above (locked) 1 x M25 cable gland enclosed 5602407G is the successor of the article 5601A.
