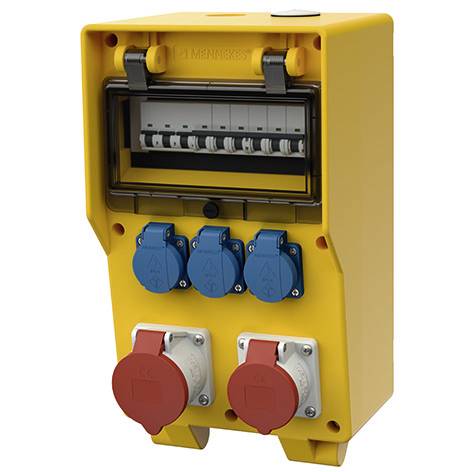

MENNEKES 70007 CEE socket combo 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of earthed sockets CEE 7/3 (type F): 3
- Protection: LS-switch
- Residual current type: Other
- FI-Safety switch: Other
- Material of housing: Rubber
- Feed/connection options: 2 lines (loop/loop-through)
- Handling: Wall-mounting
- Product type
CEE socket combo
IP44
- Factory colour
Yellow
- Dim
(W x H x D) 275 x 410 x 243 mm
- Width
275 mm
- Height
410 mm
- Content
1 pc(s)
- Depth
243 mm
Documents & Downloads
Datasheet
Datasheet 3854979 MENNEKES 70007 CEE socket combo 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3854979 MENNEKES 70007 CEE socket combo 1 pc(s)
Description
MENNEKES distributor EverGUM ready-wired for connection Protection class IP 44 Housing: 1 solid rubber casing 380x230 mm (HxB) Upper part hinged signal yellow RAL 1003 Safety under transparent actuation flap Mounting/protection: Pos. 01 1 CEE socket 16A 5p 400V 1 LS-switch 16A 3p C Pos. 02 1 CEE-socket 32A 5p 400V 1 LS-switch 32A 3p C Pos. 03 3 protective contact sockets 16A 2p+E 230V 3 LS-switch 16A 1p B Line entry/connecting options: 2 M 40 top (left open, right closed) 2 M 40 bottom (closed) for 2 cables up to 5 x 25 mm²
