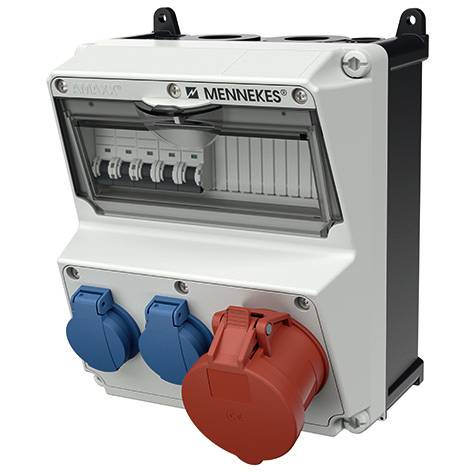

MENNEKES 920012 CEE socket combo 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- CEE socket - 16 A: Without
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of earthed sockets CEE 7/3 (type F): 2
- Protection: LS-switch
- Residual current type: Other
- FI-Safety switch: Other
- Housing material: Plastic
- Feed/connection options: 1 line (stub cable)
- Handling: Wall-mounting
- Product type
CEE socket combo
IP44
- Factory colour
Grey
- Dim
(W x H x D) 225 x 260 x 221 mm
- Width
225 mm
- Height
260 mm
- Content
1 pc(s)
- Depth
221 mm
Documents & Downloads
Datasheet
Datasheet 3856085 MENNEKES 920012 CEE socket combo 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3856085 MENNEKES 920012 CEE socket combo 1 pc(s)
Description
MENNEKES sockets combination AMAXX ready to connect wired Protection class IP 44 Housing: 1 AMPLAST housing 260x225 mm (HxB) sealable, with outer and inner mounting Lower part black upper part electrogray RAL 7035 laterally hinged with double thread cover screws Safety on preferred mounting rail under transparent operating flap downward opening and lockable sockets with generally angled insertion direction/security: Item 01 1 CEE socket 32A 5p 400V 1 LS-switch 32A 3p D pos.02 2 protective contact sockets 16A 2p+E 230V 2 LS-switch 16A 1p C cable entry/connection possibility: each 2 M 32 above and below (closed) each 2 M 20 above and below (closed) for 1 cable up to 5 x 10 mm²
This text is machine translated.
