MENNEKES 920018 CEE socket combo 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- CEE socket - 16 A: 2x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Protection: LS-switch
- Residual current type: Other
- FI-Safety switch: Other
- Housing material: Plastic
- Feed/connection options: 2 lines (loop/loop-through)
- Handling: Wall-mounting
- Product type
CEE socket combo
IP44
- Factory colour
Grey
- Dim
(W x H x D) 225 x 260 x 209 mm
- Width
225 mm
- Height
260 mm
- Content
1 pc(s)
- Depth
209 mm
Documents & Downloads
Datasheet
Datasheet 3854948 MENNEKES 920018 CEE socket combo 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3854948 MENNEKES 920018 CEE socket combo 1 pc(s)
Description

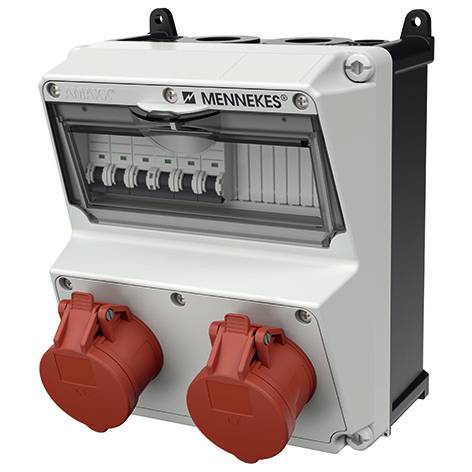

MENNEKES sockets combination AMAXX ready to connect wired Protection class IP 44 Housing: 1 AMPLAST housing 260x225 mm (HxB) sealable, with outer and inner mounting Lower part black upper part electrogray RAL 7035 laterally hinged with double thread cover screws Safety on preferred mounting rail under transparent operating flap downward opening and lockable sockets with generally angled insertion direction/security: 2 CEE sockets 16A 5p 400V 2 LS-switches 16A 3p D Line entry/connection possibility: each 2 M 32 at the top and bottom (closed) each 2 M 20 at the top and bottom (closed) for 2 cables up to 5 x 10 mm²
