MENNEKES 920024 CEE socket combo 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- CEE socket - 16 A: 2x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of earthed sockets CEE 7/3 (type F): 2
- Security: Other
- Residual current type: Other
- FI-Safety switch: Other
- Housing material: Plastic
- Feed/connection possibility: Other
- Handling: Wall-mounting
- Product type
CEE socket combo
IP44
- Factory colour
Grey
- Dim
(W x H x D) 225 x 260 x 209 mm
- Width
225 mm
- Height
260 mm
- Content
1 pc(s)
- Depth
209 mm
Documents & Downloads
Datasheet
Datasheet 3856665 MENNEKES 920024 CEE socket combo 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3856665 MENNEKES 920024 CEE socket combo 1 pc(s)
Description

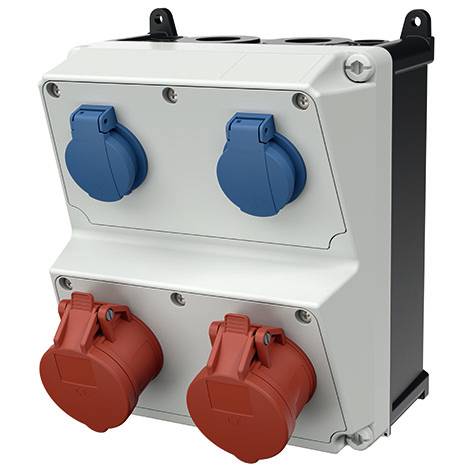

MENNEKES socket combination AMAXX ready to connect wired Protection class IP 44 Housing: 1 AMAPLAST housing 260x225 mm (HxB) sealable, with outer and inner mounting Lower part black upper part electrogray RAL 7035 laterally hinged with double thread cover screws Sockets with generally angled insertion direction: Pos.01 2 CEE sockets 16A 5p 400V pos.02 2 protective contact sockets 16A 2p+E 230V Line entry/connection possibility: each 2 M 32 at the top and bottom (closed) each 2 M 20 at the top and at the bottom (closed) terminal for 1 cable up to 5 x 10 mm² terminal for 1 cable up to 3 x 10 mm²
