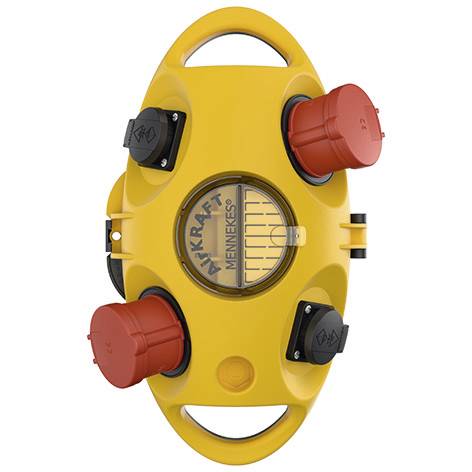

MENNEKES 94552GE CEE socket combo 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- CEE socket - 16 A: 2x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of earthed sockets CEE 7/3 (type F): 2
- Security: Without
- Residual current type: Other
- FI-Safety switch: Other
- Housing material: Plastic
- Feed/connection options: 1 line (stub cable)
- Handling: Dependent
- Product type
CEE socket combo
IP44
- Factory colour
Yellow
- Dim
(W x H x D) 285 x 433 x 184 mm
- Width
285 mm
- Height
433 mm
- Content
1 pc(s)
- Depth
184 mm
Documents & Downloads
Datasheet
Datasheet 3856471 MENNEKES 94552GE CEE socket combo 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3856471 MENNEKES 94552GE CEE socket combo 1 pc(s)
Description
MENNEKES AIRKRAFT Ready wired for connection Protection type IP 44 Housing: 1 AMAPLAST housing black (similar to RAL 9005) and hinged device cover (yellow) Safety under transparent actuation flap Mounting:/Security: Pos.01 2 CEE-sockets 16A 5p 400V Pos.02 2 Safety contact sockets 16A 2p+E 230V without safety Cable entries: at the top closed, for breaking off 1x M32, 1x M25, 2x M20 1x feedthrough for compressed air connection closed on the side, for breaking off 1x M25 terminal for 1 cable up to 5 x 10 mm² inclusive Mounting eyelets (102070)
