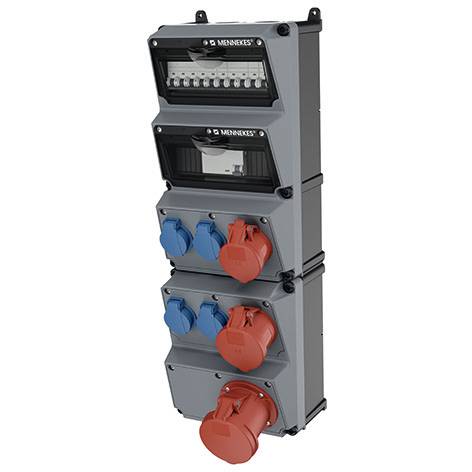

MENNEKES 950041 CEE socket combo 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: 1x63A5p400V
- CEE socket - 125A: Without
- Number of earthed sockets CEE 7/3 (type F): 4
- Protection: LS-switch
- Residual current type A
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Feed/connection options: 2 lines (loop/loop-through)
- Handling: Wall-mounting
- Product type
CEE socket combo
IP44
- Factory colour
Grey
- Dim
(W x H x D) 230 x 700 x 260 mm
- Width
230 mm
- Height
700 mm
- Content
1 pc(s)
- Depth
260 mm
Documents & Downloads
Datasheet
Datasheet 3854557 MENNEKES 950041 CEE socket combo 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3854557 MENNEKES 950041 CEE socket combo 1 pc(s)
Description
MENNEKES socket combination AMAXX ready to connect wired Degree of protection IP 44 Housing: 1 AMELAN enclosure 650x225 mm (HxB) sealable, with external and internal mounting Lower section black upper section gray RAL 7000 laterally hinged with double thread cover screws Security on preferred mounting rail under transparent operating flap downward opening and lockable sockets with generally angled insertion direction / security: Pos. 01 1 CEE-socket 63A 5p 400V HW/VN pos. 02 1 CEE-socket 32A 5p 400V HW/VN 1 LS-switch 32A 3p C (Doepke) pos. 03 1 CEE-socket 16A 5p 400V HW/VN 1 LS-switch 16A 3p C (Doepke) pos. 04 4 protective contact sockets 16A 2p+E 230V 4 LS-switch 16A 1p C (Doepke) pos 01-04 1 2 FI-circuit breaker 63A 4p IFN= 0.03 A (Doepke HD) Line entry/connection option: 2 M each top and bottom (closed) 2 M 20 each top and bottom (closed) Terminal for 40 lines up to 5 x 25 mm² (flexible max. 16mm²)
