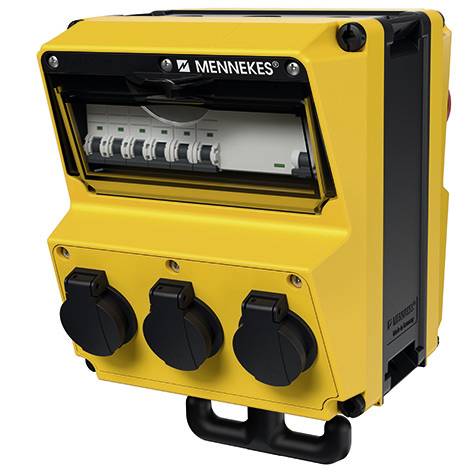

MENNEKES 970005GE CEE socket combo 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of earthed sockets CEE 7/3 (type F): 3
- Protection: LS-switch
- Residual current type A
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Housing material: Plastic
- Feed/connection options: 1 line (stub cable)
- Type of mains connection: Other
- Handling: Dependent
- Product type
CEE socket combo
IP44
- Factory colour
Yellow
- Dim
(W x H x D) 225 x 370 x 330 mm
- Width
225 mm
- Height
370 mm
- Content
1 pc(s)
- Depth
330 mm
Documents & Downloads
Datasheet
Datasheet 3854530 MENNEKES 970005GE CEE socket combo 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3854530 MENNEKES 970005GE CEE socket combo 1 pc(s)
Description
MENNEKES socket combination AMAXX dependent upon connection ready wired Protection class IP 44 Housing: 1 AMPLAST housing 260x225 mm (HxB) sealable with suspension eyes on top, grip hooks on the bottom and enclosed chain set housing frame black housing top parts yellow hinged on sides with double thread cover screws Security on presceable mounting rail under transparent operating flap downward opening and using padlock sockets lockable with generally angled plug-in direction Mounting/security: Item 01 1 CEE socket 32A 5P 400V pos.02 1 CEE socket 16A 5P 400V 1 LS-switch 16 3P C pos.03 3 safety sockets 16A 2P+E 230V 3 LS-switch 16A 1P C pos.04 1 Cepex data double socket 2x including 2 x data insert RJ45 CAT. 6 pos.01-03 1 FI circuit-breaker 40A 4P IFN = 0.03 A Cable entry/connection possibility: 1 M 32 top (closed) 1 M 25 top (closed) 1 M 20 top (closed) for a cable up to 5 x 10 mm²
