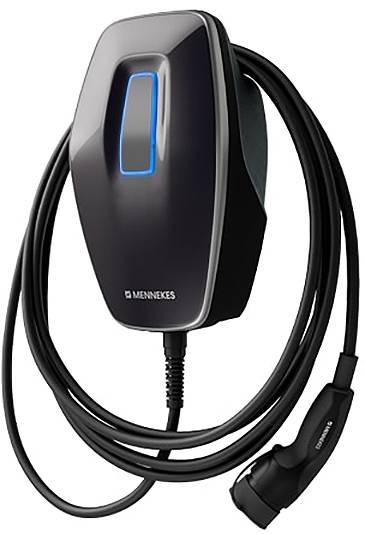

MENNEKES AMTRON 4You11022C2BK Wallbox
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Height: 168 mm
- Width 226 mm
- Depth: 402 mm
- Mounting type: Wall mounting
- Protection class (IP) IP54
- Impact strength: IK10
- Housing material: Plastic
- Frequency: 50 Hz
- Input voltage 230 – .400 V
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With display: No.
- Design connection system side: 3-phase
- Rated connection power 22 kW
- Number of loading points: 1
- Max. Power per charging point 22 kW
- With house connection box (HAK): No.
- Charging cable permanently lockable on the charging station: No.
- DC fault current detection: Yes
- Contactor contact welding detection: Yes
- With circuit breaker: No.
- Network-compatible as Master: No.
- Network-compatible as Extender: No.
- Network-compatible via LAN: No.
- Network-compatible via WLAN: No.
- LTE: No.
- Wireless standard 5G: No
- With energy meter: No.
- With key switch: No.
- With integrated RFID card reader: No.
- NFC (Near Field Communication): No.
- Static load management integrated: No.
- Suitable for dynamic load management: No.
- Plug and charge (ISO 15118): No.
- Operation and configuration via APP: No.
- Export of the load history: No.
- Suitable for cable cross-sections of 10 mm²
- Backend included in delivery: No.
- With MID-compatible energy counter: No.
- True-to-law: No.
- Number of charging couplings type 2: 1
- Length of charging cable 8 m
- Product type
Wallbox
- Factory colour
Multicolour
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3552065 MENNEKES AMTRON 4You11022C2BK Wallbox
User & Safety Instructions
User & Safety Instructions 3552065 MENNEKES AMTRON 4You11022C2BK Wallbox
User & Safety Instructions 3552065 MENNEKES AMTRON 4You11022C2BK Wallbox
Information
Information 3552065 MENNEKES AMTRON 4You11022C2BK Wallbox
Description
AMTRON® 4You 110 - the wall box for easy home charging. The MENNEKES Wallbox AMTRON® 4You 110 is the ideal solution for getting started with electric mobility and convenient charging of electric vehicles in the private sector. The charging station is equipped with the latest technology, in order to ensure a user-friendly handling and the highest safety. The Wallbox can be designed individually by means of the exchangeable front cover from the accessories. AMTRON® 4You 110 is compatible with all common electric vehicles. AMTRON® 4You 110 focuses on the essentials: &Quot
Simply plug in and charge"
- At any time and without the need for authorization. With the fixed mounted charging cable type 2, with a length of 7.5 meters, and the integrated cable management the Wallbox offers additional comfort for charging at home.
