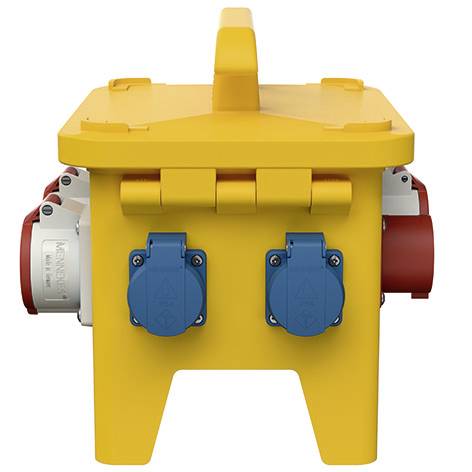

MENNEKES CEE power distributor 70660
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of earthed sockets CEE 7/3 (type F): 4
- Protection: LS-switch
- Residual current type A
- FI-circuit breaker: FI with IFN 0.03 A (standard)
- Material of housing: Rubber
- Feed/connection options: Feed with connector
- Handling: Portable
- Product type
CEE power distributor
IP44
- Factory colour
Yellow
- Dim
(W x H x D) 330 x 410 x 305 mm
- Width
330 mm
- Height
410 mm
- Content
1 pc(s)
- Depth
305 mm
Documents & Downloads
Datasheet
Datasheet 3856442 MENNEKES CEE power distributor 70660
User & Safety Instructions
User & Safety Instructions 3856442 MENNEKES CEE power distributor 70660
Description
MENNEKES distributor EverGUM compact, portable, ready wired for connection Drawing: 1-2959 protection type IP 44 Housing: 1 solid rubber casing 306x230x288 mm (LxWxH) signal yellow RAL 1003, stackable, with carry handle Security under hinged housing cover with stainless steel snap closure, lockable mounting/protection: Item 01 1 CEE socket 32A 5p 400V pos.02 1 CEE socket 16A 5p 400V 1 LS-switch 16A 3p K pos.03 4 protective contact sockets 16A 2p+E 230V 2 LS-switch 16A 1p K pos.0103 1 FI-circuit breaker 40A 4p IFN=0.03A Feed/connection type: 1 CEE-mounted plug 32A 5p 400V
