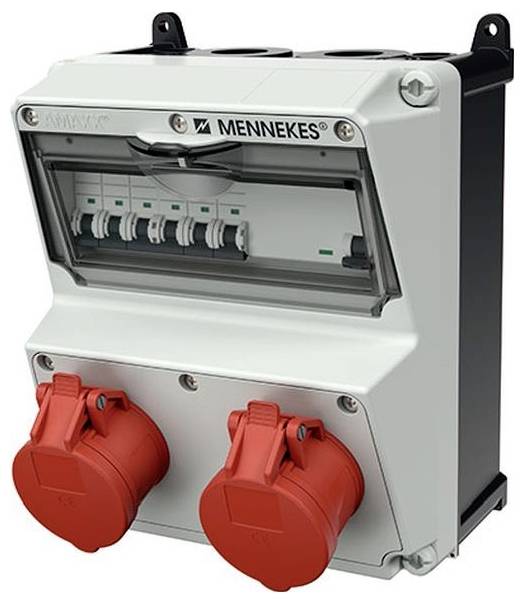

MENNEKES CEE power distributor 920019
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
2
- Nominal output voltage
400 V
IP44
- Protection
LS - switches + FI-circuit breaker
- Factory colour
Grey
- Dim
(W x H) 225 mm x 260 mm
- Width
225 mm
- Height
260 mm
- Type
Wall mounting
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3818845 MENNEKES CEE power distributor 920019
User & Safety Instructions
User & Safety Instructions 3818845 MENNEKES CEE power distributor 920019
Description
MENNEKES sockets combination AMAXX ready to connect wired Protection class IP 44 Housing: 1 AMPLAST housing 260x225 mm (HxB) sealable, with outer and inner mounting Lower part black upper part electrogray RAL 7035 laterally hinged with double thread cover screws Safety on preferred mounting rail under transparent operating flap downward opening and lockable sockets with generally angled insertion direction/security: 2 CEE sockets 16A 5p 400V 2 LS-switches 16A 3p C 1 FI-circuit breaker 40A 4p IFN=0.03A Cable entry/connection options: each 2 M 32 at the top and bottom (closed) each 2 M 20 at the top and bottom (closed) for 1 cable up to 5 x 10 mm²
