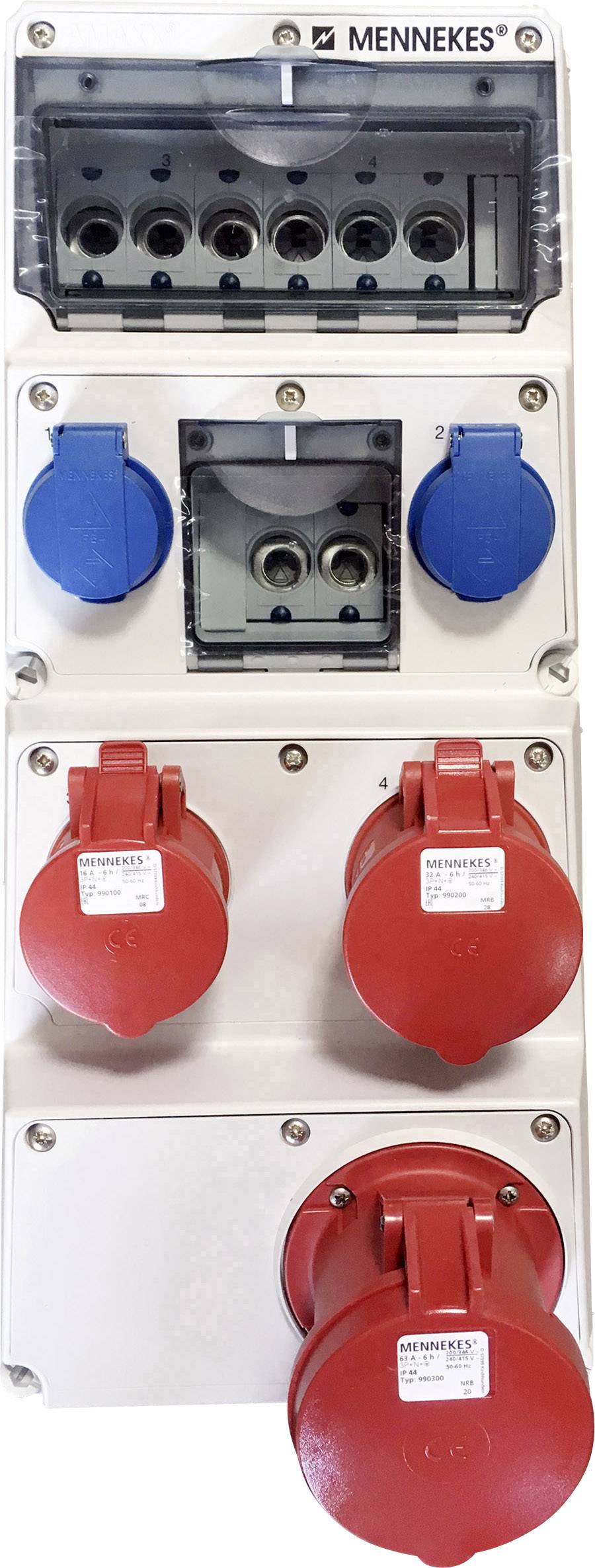

MENNEKES CEE power distributor 940009 940009 400 V 63 A
EAN:
Part number:
Item no:
Highlights & Details
Mennekes AMAXX socket combo 940009
- Wired ready for connection
- On the side of feeder urinary buch
- IP44 Protection against foreign objects and water splashes
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
3
- Type B
PG socket
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 63 A)
- No. of PG sockets
2
- Inputs
2
- Outputs
5
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
63 A
IP44
- Protection
1x D0 fuse
- Factory colour
Grey
Black
- Dim
(W x H x D) 225 x 520 x 260 mm
- Width
225 mm
- Height
520 mm
- Outputs (CEE power distributors)
PG connector
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 63 A)
- Content
1 pc(s)
- Number of pins
5
- Depth
260 mm
Grey
225
520 mm
260 mm
Plastic
IP44
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1760819 MENNEKES CEE power distributor 940009 940009 400 V 63 A
Description
With AMAXX combine clever and thus save valuable installation time. Only one cable, less drill holes, less cable and pipe clamps and only a housing, whose outer fixing the one-man mounting. The Hinged Ruder, side-opening lid as well as the vorziehbaren top hat rails and the large connection space facilitate the connection work. AMAXX is ready to connect pre-wired and tested for electrical safety and quality according to IEC 61439.
This text is machine translated.
This text is machine translated.
Features
- Housing and box insert from AMAPLAST ®
- Security under transparent control flap
