MENNEKES CEE power distributor 96704
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Contact material: CuSn
- Military version: No.
- Surface treatment contacts: Untreated
- CEE socket - 16 A: 2x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Security: Other
- Residual current type: Other
- FI-Safety switch: Other
- Housing material: Plastic
- Feed/connection options: 1 line (stub cable)
- Handling: Portable
- Product type
CEE power distributor
IP44
- Factory colour
Grey
- Dim
(W x H x D) 81 x 407 x 72 mm
- Width
81 mm
- Height
407 mm
- Content
1 pc(s)
- Depth
72 mm
Documents & Downloads
Datasheet
Datasheet 3856460 MENNEKES CEE power distributor 96704
User & Safety Instructions
User & Safety Instructions 3856460 MENNEKES CEE power distributor 96704
Description

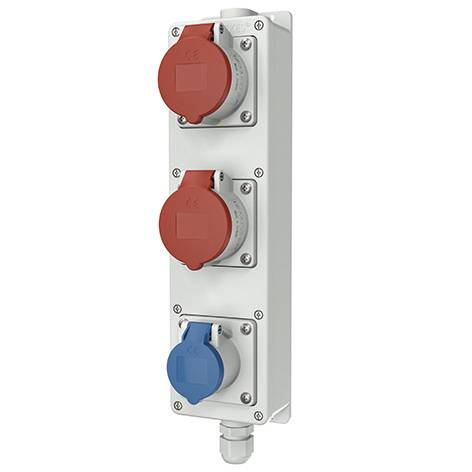

MENNEKES socket strip ready-wired for connection Protection class IP 44 Housing: 1 PA-Housing 408x97x60 mm (LxWxH) electro-gray RAL 7035 Mounting: Pos.01 2 CEE-Sockets 16A 5p 400V Pos.02 1 CEE-Socket 16A 3p 230V Line entry / connection possibility: 1 M 25 closed 1 M 25 with screw connection (enclosed) Terminal for 1 cable up to 5 x 6 mm² with internal strain relief clamp 1 bracket (loose)
