MENNEKES X-CONTACT® 5604506G CEE wall socket 32 A 400 V AC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
CEE wall socket
- Features
Mechanical locking mechanism
- Nominal voltage
400 V AC
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Type
Lower and upper part
IP67

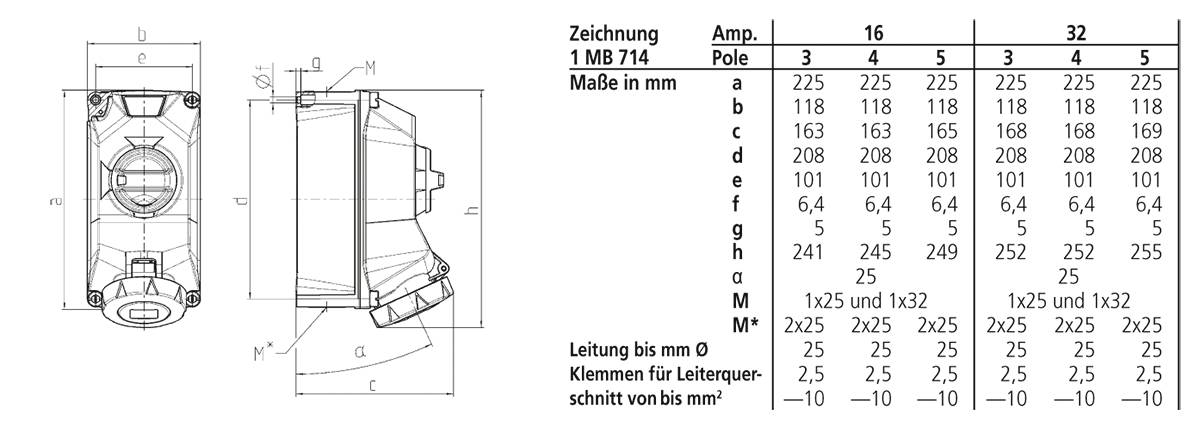

- Dim
(L x W) 225 mm x 118 mm
- Length
225 mm
- Width
118 mm
- Content
1 pc(s)
- Number of pins
5
Base unit and cover
Mechanical locking
Mixed
5
Plastic
Untreated
32 A
30 A
FALSE
CuSn
FALSE
IP67
FALSE
6 h
Red
400 V (50+60 Hz) red
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3118134 MENNEKES X-CONTACT® 5604506G CEE wall socket 32 A 400 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3118134 MENNEKES X-CONTACT® 5604506G CEE wall socket 32 A 400 V AC 1 pc(s)
User & Safety Instructions 3118134 MENNEKES X-CONTACT® 5604506G CEE wall socket 32 A 400 V AC 1 pc(s)
Information
Information 3118134 MENNEKES X-CONTACT® 5604506G CEE wall socket 32 A 400 V AC 1 pc(s)
Description
MENNEKES wall socket DUO 32A 5P 6h 400V IP67 X-CONTACT can be switched off lockable ready to connect wired plastic housing: Dimensions 225x118 mm (L x B) can be locked with padlock upper part gray RAL 7035 lower part black RAL 9005 with double thread cover screws Mounting: Circuit breaker 3P + N + PE cable entry: Lower part can be rotated 180° Connection possible from above and below Delivery state 2 x M25 below (locked) 1 x M25 and 1 x M32 above (locked) 1 x M25 cable gland enclosed 5604506G is the successor of the Article 5608A.
