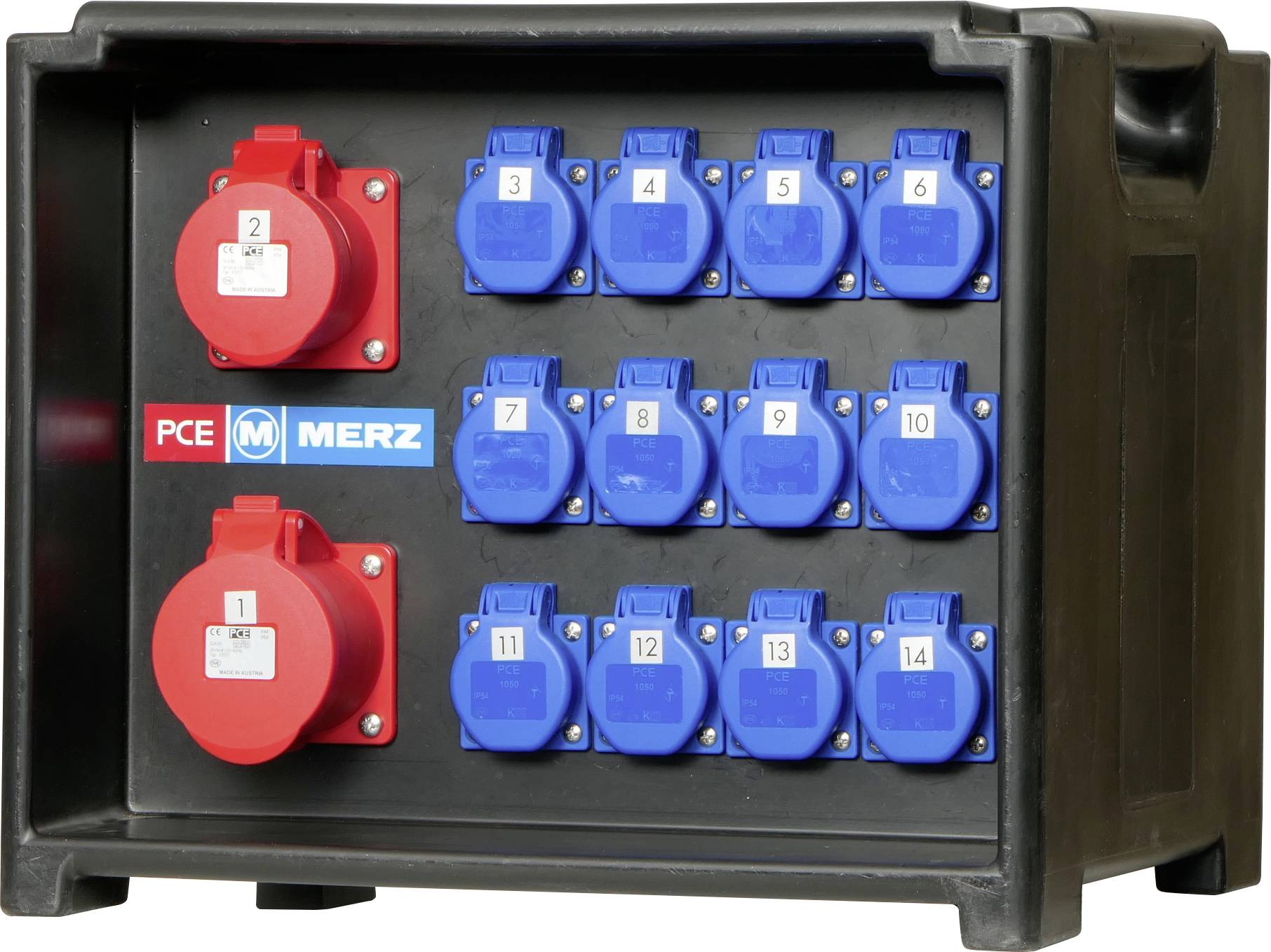

MERZ CEE power distributor M-SVE3 32/11-12 MZ80030 400 V 32 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Event distributor 32 A
- Extremely robust polyethylene case
- Stackable
- Integrated carry handle
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
2
- Type A
CEE socket (5-pin, 32 A)
- Type B
CEE socket (5-pin, 16 A)
CEE socket (5-pin, 32 A)
PG socket
- No. of PG sockets
12
- Inputs
CEE socket 32 A, 5-pin
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
32 A
IP44
- Cable length
2 m
- Dim
(L x W x H) 350 x 400 x 340 mm
- Length
350 mm
- Width
400 mm
- Height
340 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
CEE connector (5-pin, 32 A)
PG connector
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3521769 MERZ CEE power distributor M-SVE3 32/11-12 MZ80030 400 V 32 A
User & Safety Instructions
User & Safety Instructions 3521769 MERZ CEE power distributor M-SVE3 32/11-12 MZ80030 400 V 32 A
Description
Socket distributor plastic 22 kVA IP44
Stackable with integrated carrying handles
Feed: 1xCEE 32A 5-pin Plug with 2m connection cable
FI-circuit breaker 1x40/0.03A type A
CEE socket 5-pin: 1x16A; 1x 32A
Earthing contact sockets 12
Circuit breaker: 1x16A C 3-pin;12x16A C 1-pin.
This text is machine translated.
Stackable with integrated carrying handles
Feed: 1xCEE 32A 5-pin Plug with 2m connection cable
FI-circuit breaker 1x40/0.03A type A
CEE socket 5-pin: 1x16A; 1x 32A
Earthing contact sockets 12
Circuit breaker: 1x16A C 3-pin;12x16A C 1-pin.
This text is machine translated.
